Since v1.0 License: Community

Has And Belongs To Many ​

The HasAndBelongsToMany association works similarly to HasMany.

ruby
field :users, as: :has_and_belongs_to_many

Options ​

searchable

License: Pro Watch the demo video

Turns the attach field/modal from a select input to a searchable experience

ruby
class Avo::Resources::CourseLink < Avo::BaseResource
  def fields
    field :links,
      as: :has_many,
      searchable: true
  end
end

WARNING

Avo uses the search feature behind the scenes, so make sure the target resource has the search_query option configured.

ruby
# app/avo/resources/course_link.rb
class Avo::Resources::CourseLink < Avo::BaseResource
  self.search = {
    query: -> {
      query.ransack(id_eq: params[:q], link_cont: params[:q], m: "or").result(distinct: false)
    }
  }
end

Default ​

false

Possible values ​

true, false

attach_scope

Scope out the records the user sees on the Attach modal.

Default ​

nil

Possible values ​

ruby
field :user,
  as: :belongs_to,
  attach_scope: -> { query.non_admins }

Pass in a block where you attach scopes to the query object and parent object, which is the actual record where you want to assign the association. The block is executed in the ExecutionContext.

WARNING

The attach_scope will not filter the records in the listing from has_many or has_and_belongs_to_many associations. Use scope or a Pundit policy Scope for that.

ruby
field :members,
  as: :has_and_belongs_to_many,
  attach_scope: -> { query.where.not(team_id: parent.id) }

In this example, in the attach_scope, we ensure that when attaching members to a team, only those who are not already members will appear in the list of options.

scope

Scope out the records displayed in the table.

Default ​

nil

Possible values ​

ruby
field :user,
  as: :belongs_to,
  scope: -> { query.approved }

Pass in a block where you attach scopes to the query object. The block gets executed in the ExecutionContext.

With version 2.5.0, you'll also have access to the parent record so that you can use that to scope your associated models even better.

Starting with version 3.12, access to resource and parent_resource was additionally provided.

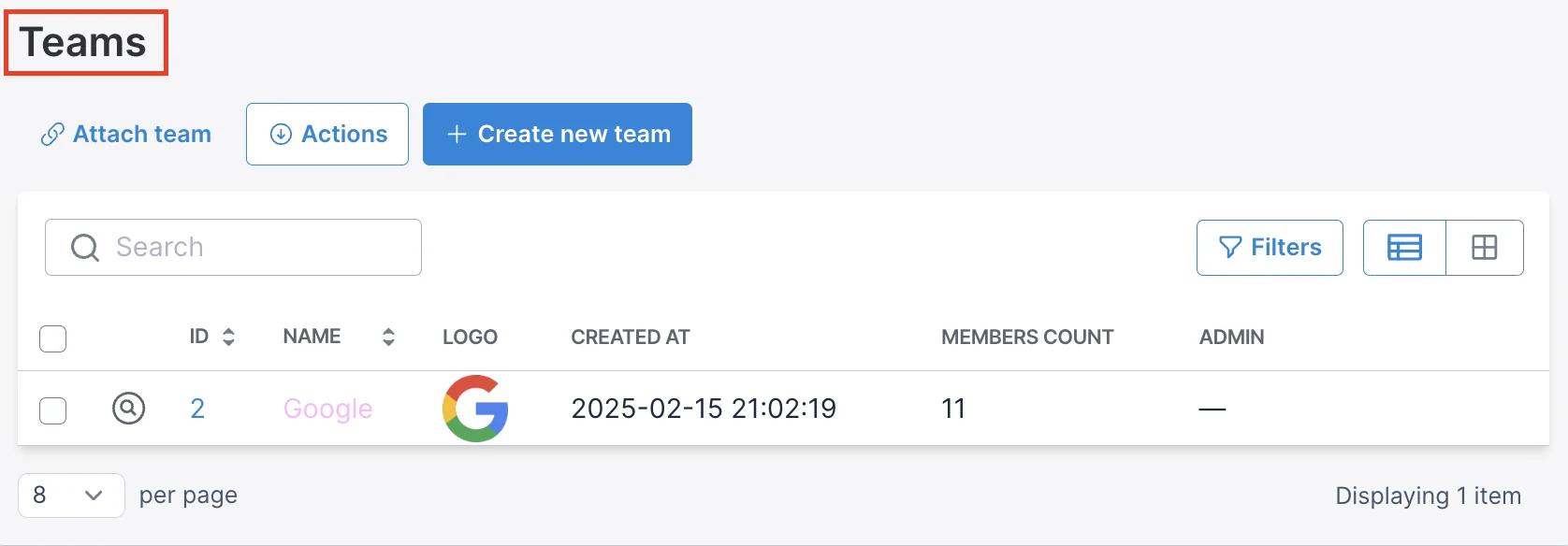

name

Changes the text displayed as association name.

Default ​

Plural association name.

Possible values ​

Any string or any zero arity lambda function.

Within lambda, you have access to all attributes of Avo::ExecutionContext.

description

Changes the text displayed under the association name.

Avo

Default ​

nil

Possible values ​

Any string or any zero arity lambda function.

Within lambda, you have access to query and all attributes of Avo::ExecutionContext.

use_resource

Sets a different resource to be used when displaying (or redirecting to) the association table.

Default ​

nil. When nothing is selected, Avo infers the resource type from the reflected association.

Possible values ​

Avo::Resources::Post, Avo::Resources::PhotoComment, or any Avo resource class.

The value can be the actual class or a string representation of that class.

ruby
# the class
Avo::Resources::Post

# the string representation of the class
"Avo::Resources::Post"

discreet_pagination

Hides the pagination details when only there's only one page for that association.

Default ​

false

Possible values ​

true, false

hide_search_input

Hides the search input displayed on the association table.

Default ​

false. When nothing is selected and the search_query of association's resource is configured, Avo displays the search input.

Possible values ​

true, false.

Search query scope ​

Since v2.13

If the resource used for the has_many association has the search block configured with a query, Avo will use that to scope out the search query to that association.

For example, if you have a Team model that has_many Users, now you'll be able to search through that team's users instead of all of them.

You can target that search using params[:via_association]. When the value of params[:via_association] is has_many, the search has been mad inside a has_many association.

For example, if you want to show the records in a different order, you can do this:

ruby
self.search = {
  query: -> {
    if params[:via_association] == 'has_many'
      query.ransack(id_eq: params[:q], m: "or").result(distinct: false).order(name: :asc)
    else
      query.ransack(id_eq: params[:q], m: "or").result(distinct: false)
    end
  }
}

Show on edit screens ​

By default, the has_and_belongs_to_many field is only visible in the show view. To make it available in the edit view as well, include the show_on: :edit option. This ensures that the has_and_belongs_to_many show view component is also rendered within the edit view.

Nested in Forms ​

Since v3.19.0 Public beta

You can use "Show on edit screens" to make the has_and_belongs_to_many field available in the edit view. However, this will render it using the show view component.

To enable nested creation for the has_and_belongs_to_many field, allowing it to be created and / or edited alongside its parent record within the same form, use the nested option which is a hash with configurable option.

Keep in mind that this will display the field’s resource as it appears in the edit view.

nested

Enables this field as a nested form in the specified views.

Default value ​

{}

Possible values ​

A hash with the following options:

  • on: Views in which to enable nesting. Accepted values:
    • :new - Enables nesting in the new view.
    • :edit - Enables nesting in the edit view.
    • :forms - Enables nesting in the new and edit views.
  • limit: (Only for has_many and has_and_belongs_to_many fields) Hides the "Add" button when the specified limit is reached.

TIP

Setting nested: true is a shortcut for nested: { on: :forms }.

Example ​

ruby
# app/avo/resources/book.rb
class Avo::Resources::Book < Avo::BaseResource
  def fields
    # Shortcut for full nesting
    field :authors, as: :has_and_belongs_to_many, nested: true

    # Explicit nesting on new only
    field :authors, as: :has_and_belongs_to_many, nested: { on: :new }

    # Explicit nesting on edit only
    field :authors, as: :has_and_belongs_to_many, nested: { on: :edit }

    # Explicit nesting on both new and edit
    field :authors, as: :has_and_belongs_to_many, nested: { on: :forms }

    # Limit nested creation (for has_many or has_and_belongs_to_many only)
    field :authors,
      as: :has_and_belongs_to_many,
      nested: { on: [:new, :edit], limit: 2 }
  end
end

Searchable has_and_belongs_to_many ​

Since v1.25 License: Pro

Similar to belongs_to, the has_many associations support the searchable option.

Add scopes to associations ​

Watch the demo video

When displaying has_many associations, you might want to scope out some associated records. For example, a user might have multiple comments, but on the user's Show page, you don't want to display all the comments, but only the approved ones.

ruby
# app/models/comment.rb
class Comment < ApplicationRecord
  belongs_to :user, optional: true

  scope :approved, -> { where(approved: true) }
end

# app/models/user.rb
class User < ApplicationRecord
  has_many :comments
end

# app/avo/resources/user.rb
class Avo::Resources::User < Avo::BaseResource
  def fields
    field :comments, as: :has_many, scope: -> { query.approved }
  end
end

The comments query on the user Index page will have the approved scope attached.

Association scope

With version 2.5.0, you'll also have access to the parent record so that you can use that to scope your associated models even better.

Starting with version 3.12, access to resource and parent_resource was additionally provided.

All the has_many associations have the attach_scope option available too.

Show/hide buttons ​

You will want to control the visibility of the attach/detach/create/destroy/actions buttons visible throughout your app. You can use the policy methods to do that.

Find out more on the authorization page.

Associations authorization

Reloadable

Since v3.3.6

The reloadable option adds a reload icon next to the association title so users can easily reload just that turbo-frame instead of doing a full page reload.

Usage ​

To enable the reloadable feature, you have two options:

  1. Direct Boolean Value:

Provide a boolean value directly to the reloadable option. This sets a default behavior where the reloadable feature is either enabled or disabled based on this boolean value.

ruby
field :reviews, as: :has_and_belongs_to_many, reloadable: true
  1. Dynamic Conditions with a Block:

For more dynamic behavior, you can provide a block to the reloadable option. Within this block, you can specify conditions under which the reloadable should be displayed.

ruby
field :reviews, as: :has_and_belongs_to_many,
  reloadable: -> {
    current_user.is_admin?
  }

In the above example, the reloadable will be visible if the current_user is an admin.

ExecutionContext ​

The reloadable block executes within the ExecutionContext, granting access to all default methods and attributes.

Reloadable

association

Since v3.6.2

The for_attribute option allows to specify the association used for a certain field. This option make possible to define same association with different scopes and different name several times on the same resource.

Usage ​

ruby
field :reviews,
  as: :has_and_belongs_to_many

field :special_reviews,
  as: :has_and_belongs_to_many,
  for_attribute: :reviews,
  scope: -> { query.special_reviews }
