Filters

Filters allow you to better scope the index queries for records you are looking for.

Each filter is configured in a class with a few dedicated methods and options. To use a filter on a resource you must register it and it will be displayed on the Index view.

Filter options

-> self.name

self.name is what is going to be displayed to the user in the filters panel.

self.name = "User names filter"

Since v3.14.0

self.name = -> { I18n.t("avo.filter.name") }

Within this block, you gain access to all attributes of Avo::ExecutionContext along with the arguments.

-> self.button_label

The value of self.button_label is the label displayed on the button that applies the filter.

self.button_label = "Filter by user names"

Since v3.14.0

self.button_label = -> { I18n.t("avo.filter.button_label") }

Within this block, you gain access to all attributes of Avo::ExecutionContext along with the arguments.

-> self.visible

You may want to show/hide the filter in some scenarios. You can do that using the self.visible attribute.

Inside the visible block you can acces the following variables and you should return a boolean (true/false).

  self.visible = -> do
    #   You have access to:
    #   block
    #   context
    #   current_user
    #   params
    #   parent_model
    #   parent_resource
    #   resource
    #   view
    #   view_context
    true
  end

-> self.empty_message

There might be times when you will want to show a message to the user when you're not returning any options.

More on this in the Empty message guide.

-> options

Some filters allow you to pass options to the user. For example on the [select filter](#select_filter) you can set the options in the dropdown, and on the [boolean filter](#boolean_filter) you may set the checkbox values. Each filter type has their own `options` configuration explained below.

In the options method you have access to the request, params, context, view_context, and current_user objects.

-> apply

The `apply` method is what is going to be run when Avo fetches the records on the Index view.

It recieves the request form which you can get all the params if you need them, it gets the query which is the query Avo made to fetch the records. It's a regular Active Record which you can manipulate.

It also receives the values variable which holds the actual choices the user made on the front-end for the options you set.

-> default

You may set default values for the `options` you set. For example you may set which option to be selected for the [select filter](#select_filter) and which checkboxes to be set for the [boolean filter](#boolean_filter).

In the default method you have access to the request, params, context, view_context, and current_user objects.

-> react

This is a hook in which you can change the value of the filter based on what other filters have for values.

More on this in the React to filters guide

Register filters

In order to use a filter you must register it on a Resource using the filter method inside the filters method.

class Avo::Resources::Post < Avo::BaseResource
  self.title = :name

  def fields
    field :id, as: :id
  end

  def filters
    filter Avo::Filters::Published
  end
end

Filter types

Avo has several types of filters available Boolean filter, Select filter, Multiple select filter, Text filter and since version 3.11.8 Date time filter.

Filter values

Because the filters get serialized back and forth, the final value/values in the apply method will be stringified or have the stringified keys if they are hashes. You can declare them as regular hashes in the options method, but they will get stringified.

-> Boolean Filter

The boolean filter is a filter where the user can filter the records using one or more checkboxes.

To generate one run:

bin/rails generate avo:filter featured

or

bin/rails generate avo:filter featured --type boolean

Here's a sample filter

class Avo::Filters::Featured < Avo::Filters::BooleanFilter
  self.name = 'Featured filter'

  # `values` comes as a hash with stringified keys
  # Eg:
  # {
  #   'is_featured': true
  # }
  def apply(request, query, values)
    return query if values['is_featured'] && values['is_unfeatured']

    if values['is_featured']
      query = query.where(is_featured: true)
    elsif values['is_unfeatured']
      query = query.where(is_featured: false)
    end

    query
  end

  def options
    {
      is_featured: "Featured",
      is_unfeatured: "Unfeatured"
    }
  end

  # Optional method to set the default state.
  # def default
  #   {
  #     is_featured: true
  #   }
  # end
end

Each filter file comes with a name, apply, and options methods.

The name method lets you set the name of the filter.

The apply method is responsible for filtering out the records by giving you access to modify the query object. The apply method also gives you access to the current request object and the passed values. The values object is a Hash containing all the configured options with the option name as the key and true/false as the value.

# Example values payload
{
  'is_featured': true,
  'is_unfeatured': false,
}

The options method defines the available values of your filter. They should return a Hash with the option id as a key and option label as value.

Default value

You can set a default value to the filter, so it has a predetermined state on load. To do that, return the state you desire from the default method.

class Avo::Filters::Featured < Avo::Filters::BooleanFilter
  self.name = 'Featured status'

  def apply(request, query, values)
    return query if values['is_featured'] && values['is_unfeatured']

    if values['is_featured']
      query = query.where(is_featured: true)
    elsif values['is_unfeatured']
      query = query.where(is_featured: false)
    end

    query
  end

  def options
    {
      is_featured: "Featured",
      is_unfeatured: "Unfeatured"
    }
  end

  def default
    {
      is_featured: true
    }
  end
end

-> Select Filter

Select filters are similar to Boolean ones but they give the user a dropdown with which to filter the values.

rails generate avo:filter published --type select

The most significant difference from the Boolean filter is in the apply method. You only get back one value attribute, which represents which entry from the options method is selected.

A finished, select filter might look like this.

class Avo::Filters::Published < Avo::Filters::SelectFilter
  self.name = 'Published status'

  # `value` comes as a string
  # Eg: 'published'
  def apply(request, query, value)
    case value
    when 'published'
      query.where.not(published_at: nil)
    when 'unpublished'
      query.where(published_at: nil)
    else
      query
    end
  end

  def options
    {
      published: "Published",
      unpublished: "Unpublished"
    }
  end

  # Optional method to set the default state.
  # def default
  #   :published
  # end
end

Default value

The select filter supports setting a default too. That should be a string or symbol with the select item. It will be stringified by Avo automatically.

class Avo::Filters::Published < Avo::Filters::SelectFilter
  self.name = 'Published status'

  def apply(request, query, value)
    case value
    when 'published'
      query.where.not(published_at: nil)
    when 'unpublished'
      query.where(published_at: nil)
    else
      query
    end
  end

  def options
    {
      'published': 'Published',
      'unpublished': 'Unpublished',
    }
  end

  def default
    :published
  end
end

-> Multiple select filter

You may also use a multiple select filter.

rails generate avo:filter post_status --type multiple_select

class Avo::Filters::PostStatus < Avo::Filters::MultipleSelectFilter
  self.name = "Status"

  # `value` comes as an array of strings
  # Ex: ['admins', 'non_admins']
  def apply(request, query, value)
    if value.include? 'admins'
      query = query.admins
    end

    if value.include? 'non_admins'
      query = query.non_admins
    end

    query
  end

  def options
    {
      admins: "Admins",
      non_admins: "Non admins",
    }
  end

  # Optional method to set the default state.
  # def default
  #   ['admins', 'non_admins']
  # end
end

Dynamic options

The select filter can also take dynamic options:

class Avo::Filters::Author < Avo::Filters::SelectFilter
  self.name = 'Author'

  def apply(request, query, value)
    query = query.where(author_id: value) if value.present?
    query
  end

  # Example `applied_filters`
  # applied_filters = {
  #   "Avo::Filters::CourseCountryFilter" => {
  #     "USA" => true,
  #     "Japan" => true,
  #     "Spain" => false,
  #     "Thailand" => false,
  #   }
  # }
  def options
    # Here you have access to the `applied_filters` object too
    Author.select(:id, :name).each_with_object({}) { |author, options| options[author.id] = author.name }
  end
end

-> Text Filter

You can add complex text filters to Avo using the Text filter

rails generate avo:filter name --type text

class Avo::Filters::Name < Avo::Filters::TextFilter
  self.name = "Name filter"
  self.button_label = "Filter by name"

  # `value` comes as text
  # Eg: 'avo'
  def apply(request, query, value)
    query.where('LOWER(name) LIKE ?', "%#{value}%")
  end

  # def default
  #   'avo'
  # end
end

-> Date time Filter

Since v3.11.8

The ideal filter for date selection. This filter allows you to generate a date input, with options to include time selection and even a range selection mode. Customizable to suit your specific needs.

Timezone Handling

This filter sends the selected value exactly as selected, without any timezone adjustments. If you need to apply timezone conversion or adjustments, please ensure to handle it during the apply method.

Generate one by using:

rails generate avo:filter created_at --type date_time

The generated file should be following a similar format:

# frozen_string_literal: true

class Avo::Filters::CreatedAt < Avo::Filters::DateTimeFilter
  self.name = "Created at"
  # self.type = :date_time
  # self.mode = :range
  # self.visible = -> do
  #   true
  # end

  def apply(request, query, value)
    query
  end

  # def format
  #   case type
  #   when :date_time
  #     'yyyy-LL-dd TT'
  #   when :date
  #     'yyyy-LL-dd'
  #   end
  # end

  # def picker_format
  #   case type
  #   when :date_time
  #     'Y-m-d H:i:S'
  #   when :time
  #     'Y-m-d'
  #   end
  # end
end

Type

Determines the format of the input field.

Default value

:date_time

By default, the input allows users to select both a date and a time.

Possible values

• :date

  • This option restricts the input to date selection only, ideal for scenarios where time input is unnecessary.


• :time

  • This option limits the input to time selection only, suitable to apply where only the time is relevant.


• :date_time

  • This combined option enables both date and time selection, providing a comprehensive input for more detailed needs.


Mode

Defines whether the input allows selection of a single date or a range of dates.

Default value

:range

By default, the input permits users to select a range of dates, ideal for scenarios such as booking periods or event durations.

Possible values

• :range

  • Allows users to choose a start and end date, making it suitable for applications that require a time span, such as reservations or scheduling.


  INFO

  In :range mode the value will be formatted as "2024-08-13 to 2024-08-16".

  To separate the start and end dates, use date_1, date_2 = value.split(" to "), which will split the value into ["2024-08-13", "2024-08-16"]

• :single

  • Limits the selection to a single date, perfect for use cases where only one specific day needs to be selected, such as an appointment or event date.


picker_options

This filter uses flatpickr as the date and time picker. If you wish to customize the picker’s options, you can do so by overriding the picker_options(value) method. You can merge your custom options with those provided by flatpickr, which are detailed here.

# frozen_string_literal: true

class Avo::Filters::StartingAt < Avo::Filters::DateTimeFilter
  self.name = "The starting at filter"
  self.button_label = "Filter by start time"
  self.empty_message = "Search by start time"
  self.type = :time
  self.mode = :single

  def picker_options(value)
    super.merge({
      minuteIncrement: 3
    })
  end

  def apply(request, query, value)
    query.where("to_char(starting_at, 'HH24:MI:SS') = ?", value)
  end
end

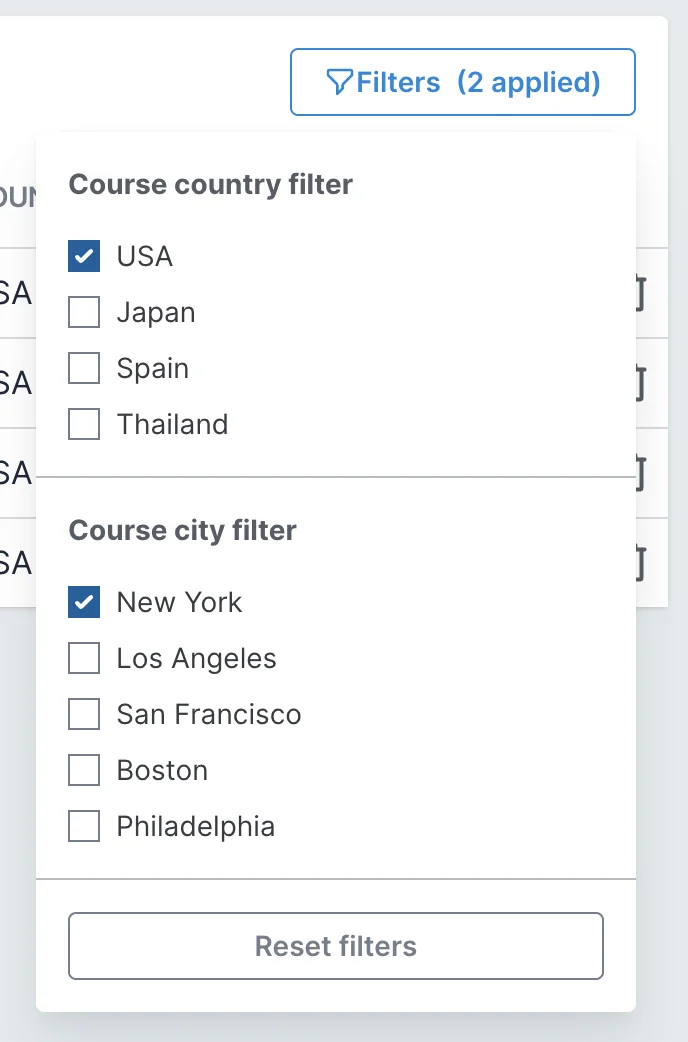

Dynamic filter options

Watch the demo video

You might want to compose more advanced filters, like when you have two filters, one for the country and another for cities, and you'd like to have the cities one populated with cities from the selected country.

Let's take the Avo::Resources::Course as an example.

# app/models/course.rb
class Course < ApplicationRecord
  def self.countries
    ["USA", "Japan", "Spain", "Thailand"]
  end

  def self.cities
    {
      USA: ["New York", "Los Angeles", "San Francisco", "Boston", "Philadelphia"],
      Japan: ["Tokyo", "Osaka", "Kyoto", "Hiroshima", "Yokohama", "Nagoya", "Kobe"],
      Spain: ["Madrid", "Valencia", "Barcelona"],
      Thailand: ["Chiang Mai", "Bangkok", "Phuket"]
    }
  end
end

We will create two filters—one for choosing countries and another for cities.

# app/avo/resources/course.rb
class Avo::Resources::Course < Avo::BaseResource
  def filters
    filter Avo::Filters::CourseCountryFilter
    filter Avo::Filters::CourseCityFilter
  end
end

The country filter is pretty straightforward. Set the query so the country field to be one of the selected countries and the options are the available countries as Hash.

# app/avo/filters/course_country.rb
class Avo::Filters::CourseCountry < Avo::Filters::BooleanFilter
  self.name = "Course country filter"

  def apply(request, query, values)
    query.where(country: values.select { |country, selected| selected }.keys)
  end

  def options
    Course.countries.map { |country| [country, country] }.to_h
  end
end

The cities filter has a few more methods to manage the data better, but the gist is the same. The query makes sure the records have the city value in one of the cities that have been selected.

The options method gets the selected countries from the countries filter (Avo::Filters::CourseCountryFilter) and formats them to a Hash.

# app/avo/filters/course_city.rb
class Avo::Filters::CourseCity < Avo::Filters::BooleanFilter
  self.name = "Course city filter"

  def apply(request, query, values)
    query.where(city: values.select { |city, selected| selected }.keys)
  end

  def options
    cities_for_countries countries
  end

  private

  # Get a hash of cities for certain countries
  # Example payload:
  # countries = ["USA", "Japan"]
  def cities_for_countries(countries_array = [])
    countries_array
      .map do |country|
        # Get the cities for this country
        Course.cities.stringify_keys[country]
      end
      .flatten
      # Prepare to transform to a Hash
      .map { |city| [city, city] }
      # Turn to a Hash
      .to_h
  end

  # Get the value of the selected countries
  # Example payload:
  # applied_filters = {
  #   "Avo::Filters::CourseCountryFilter" => {
  #     "USA" => true,
  #     "Japan" => true,
  #     "Spain" => false,
  #     "Thailand" => false,
  #   }
  # }
  def countries
    if applied_filters["Avo::Filters::CourseCountryFilter"].present?
      # Fetch the value of the countries filter
      applied_filters["Avo::Filters::CourseCountryFilter"]
        # Keep only the ones selected
        .select { |country, selected| selected }
        # Pluck the name of the coutnry
        .keys
    else
      # Return empty array
      []
    end
  end
end

The countries method above will check if the Avo::Filters::CourseCountryFilter has anything selected. If so, get the names of the chosen ones. This way, you show only the cities from the selected countries and not all of them.

React to filters

Watch the demo video

Going further with the example above, a filter can react to other filters. For example, let's say that when a user selects USA from the list of countries, you want to display a list of cities from the USA (that's already happening in options), and you'd like to select the first one on the list. You can do that with the react method.

# app/avo/filters/course_city.rb
class Avo::Filters::CourseCity < Avo::Filters::BooleanFilter
  self.name = "Course city filter"

  def apply(request, query, values)
    query.where(city: values.select { |city, selected| selected }.keys)
  end

  def options
    cities_for_countries countries
  end

  # applied_filters = {
  #   "Avo::Filters::CourseCountryFilter" => {
  #     "USA" => true,
  #     "Japan" => true,
  #     "Spain" => false,
  #     "Thailand" => false,
  #   }
  # }
  def react
    # Check if the user selected a country
    if applied_filters["Avo::Filters::CourseCountryFilter"].present? && applied_filters["Avo::Filters::CourseCityFilter"].blank?
      # Get the selected countries, get their cities, and select the first one.
      selected_countries = applied_filters["Avo::Filters::CourseCountryFilter"].select do |name, selected|
        selected
      end

      # Get the first city
      cities = cities_for_countries(selected_countries.keys)
      first_city = cities.first.first

      # Return the first city as selected
      [[first_city, true]].to_h
    end
  end

  private

  # Get a hash of cities for certain countries
  # Example payload:
  # countries = ["USA", "Japan"]
  def cities_for_countries(countries_array = [])
    countries_array
      .map do |country|
        # Get the cities for this country
        Course.cities.stringify_keys[country]
      end
      .flatten
      # Prepare to transform to a Hash
      .map { |city| [city, city] }
      # Turn to a Hash
      .to_h
  end

  # Get the value of the selected countries
  # Example `applied_filters` payload:
  # applied_filters = {
  #   "Avo::Filters::CourseCountryFilter" => {
  #     "USA" => true,
  #     "Japan" => true,
  #     "Spain" => false,
  #     "Thailand" => false,
  #   }
  # }
  def countries
    if applied_filters["Avo::Filters::CourseCountryFilter"].present?
      # Fetch the value of the countries filter
      applied_filters["Avo::Filters::CourseCountryFilter"]
        # Keep only the ones selected
        .select { |country, selected| selected }
        # Pluck the name of the coutnry
        .keys
    else
      # Return empty array
      []
    end
  end
end

After all, filters are applied, the react method is called, so you have access to the applied_filters object. Using the applied filter payload, you can return the value of the current filter.

def react
  # Check if the user selected a country
  if applied_filters["Avo::Filters::CourseCountryFilter"].present? && applied_filters["Avo::Filters::CourseCityFilter"].blank?
    # Get the selected countries, get their cities, and select the first one.
    selected_countries = applied_filters["Avo::Filters::CourseCountryFilter"]
      .select do |name, selected|
        selected
      end

    # Get the first city
    cities = cities_for_countries(selected_countries.keys)
    first_city = cities.first.first

    # Return the first city selected as a Hash
    [[first_city, true]].to_h
  end
end

Besides checking if the countries filter is populated (applied_filters["Avo::Filters::CourseCountryFilter"].present?), we also want to allow the user to customize the cities filter further, so we need to check if the user has added a value to that filter (applied_filters["Avo::Filters::CourseCountryFilter"].blank?). If these conditions are true, the country filter has a value, and the user hasn't selected any values from the cities filter, we can react to it and set a value as the default one.

Of course, you can modify the logic and return all kinds of values based on your needs.

Empty message text

Watch the demo video

There might be times when you will want to show a message to the user when you're not returning any options. You may customize that message using the empty_message option.

# app/avo/filters/course_city.rb
class Avo::Filters::CourseCity < Avo::Filters::BooleanFilter
  self.name = "Course city filter"
  self.empty_message = "Please select a country to view options."

  def apply(request, query, values)
    query.where(city: values.select { |city, selected| selected }.keys)
  end

  def options
    if countries.present?
      []
    else
      ["Los Angeles", "New York"]
    end
  end

  private

  def countries
    # logic to fetch the countries
  end
end

Keep filters panel open

Watch the demo video

There are scenarios where you wouldn't want to close the filters panel when you change the values. For that, you can use the keep_filters_panel_open resource option.

More on this on the keep_filters_panel_open resource option.

Filter arguments

Filters can have different behaviors according to their host resource. In order to achieve that, arguments must be passed like on the example below:

class Avo::Resources::Fish < Avo::BaseResource
  self.title = :name

  def fields
    field :id, as: :id
    field :name, as: :text
    field :user, as: :belongs_to
    field :type, as: :text, hide_on: :forms
  end

  def filters
    filter Avo::Filters::NameFilter, arguments: {
      case_insensitive: true
    }
  end
end

Now, the arguments can be accessed inside Avo::Filters::NameFilter apply method, options method and on the visible block!

class Avo::Filters::Name < Avo::Filters::TextFilter
  self.name = "Name filter"
  self.button_label = "Filter by name"
  self.visible = -> do
    arguments[:case_insensitive]
  end

  def apply(request, query, value)
    if arguments[:case_insensitive]
      query.where("LOWER(name) LIKE ?", "%#{value.downcase}%")
    else
      query.where("name LIKE ?", "%#{value}%")
    end
  end
end

Manually create encoded URLs

You may want to redirect users to filtered states of the Index view from other places in your app. In order to create those filtered states you may use these helpers functions or Rails helpers.

Rails helpers

-> decode_filter_params

Decodes the filters param. This Rails helper can be used anywhere in a view or off the view_context.

Usage

# in a view
decode_filter_params params[:filters] # {"NameFilter"=>"Apple"}

# Or somewhere in an Avo configuration file

class Avo::Actions::DummyAction < Avo::BaseAction
  self.name = "Dummy action"

  def handle(**args)
    filters = view_context.decode_filter_params(params[:filters])

    do_something_important_with_the_filters filters
  end
end

-> encode_filter_params

Encodes a filters object into a serialized state that Avo understands. This Rails helper can be used anywhere in a view or off the view_context.

Usage

# in a view
filters = {"NameFilter"=>"Apple"}
encode_filter_params filters # eyJOYW1lRmlsdGVyIjoiQXBwbGUifQ==

# Or somewhere in an Avo configuration file

class Avo::Actions::DummyAction < Avo::BaseAction
  self.name = "Dummy action"

  def handle(**args)
    do_something_important

    redirect_to avo.resources_users_path(filters: view_context.decode_filter_params({"NameFilter"=>"Apple"}))
  end
end

Standalone helpers

-> Avo::Filters::BaseFilter.decode_filters

Decodes the filters param. This standalone method can be used anywhere.

Usage

class Avo::Actions::DummyAction < Avo::BaseAction
  self.name = "Dummy action"

  def handle(**args)
    filters = Avo::Filters::BaseFilter.decode_filters(params[:filters])

    do_something_important_with_the_filters filters
  end
end

-> Avo::Filters::BaseFilter.encode_filters

Encodes a filters object into a serialized state that Avo understands. This standalone method can be used anywhere.

Usage

class Avo::Actions::DummyAction < Avo::BaseAction
  self.name = "Dummy action"

  def handle(**args)
    do_something_important

    redirect_to avo.resources_users_path(encoded_filters: Avo::Filters::BaseFilter.encode_filters({"Avo::Filters::NameFilter"=>"Apple"}))
  end
end
