Location

The Location field is used to display a point on a map.

field :coordinates, as: :location

WARNING

You need to add the mapkick-rb (not mapkick) gem to your Gemfile and have the MAPBOX_ACCESS_TOKEN environment variable with a valid Mapbox key.

Description

By default, the location field is attached to one database column that has the coordinates in plain text with a comma , joining them (latitude,longitude). Ex: 44.427946,26.102451

Avo will take that value, split it by the comma and use the first element as the latitude and the second one as the longitude.

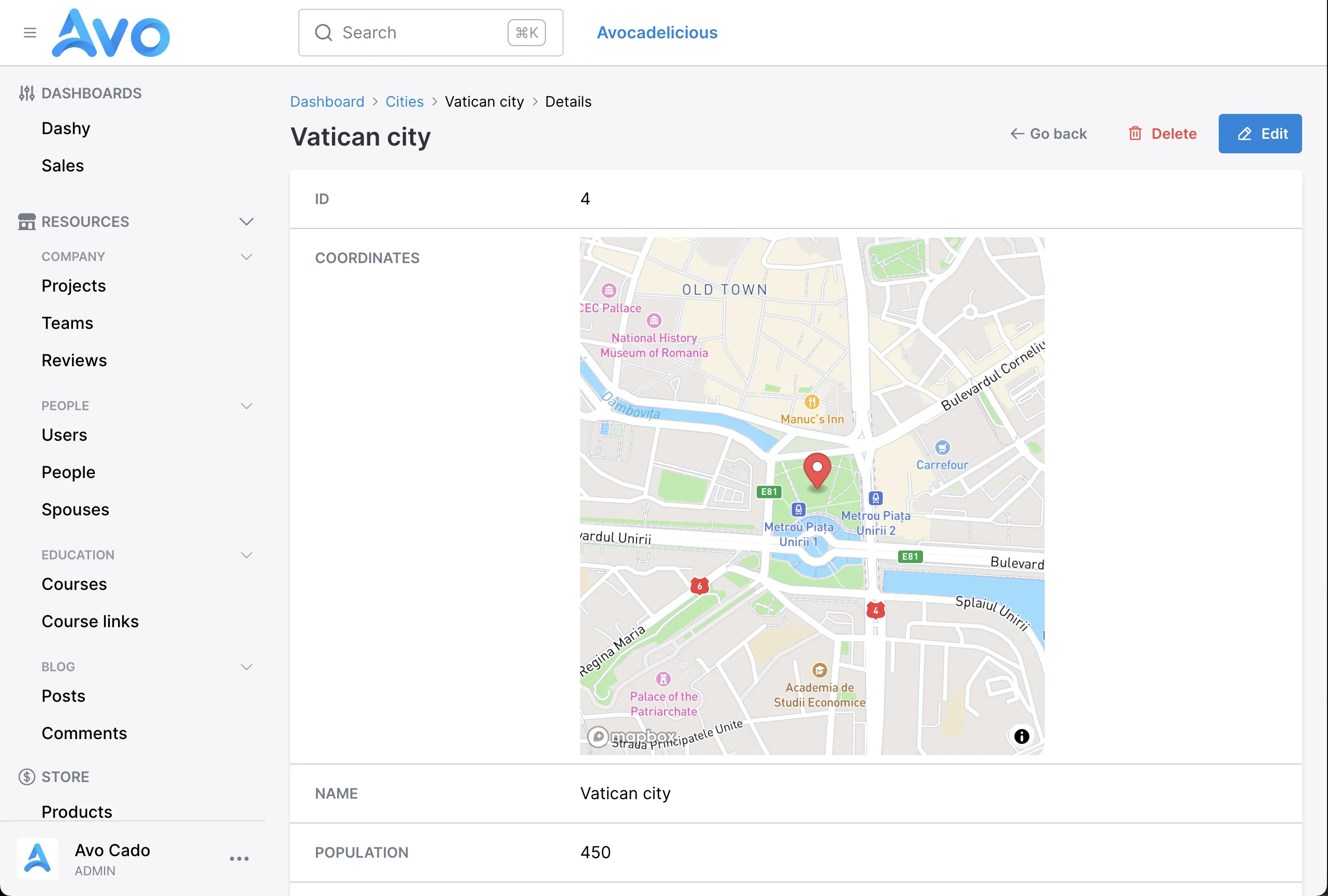

On the Show view you'll get in interactive map and on the edit you'll get one field where you can edit the coordinates.

Options

-> stored_as

It's customary to have the coordinates in two distinct database columns, one named latitude and another longitude.

You can instruct Avo to use those two with the stored_as option

Default value

nil

Possible values

nil, or [:latitude, :longitude].

field :coordinates, as: :location, stored_as: [:latitude, :longitude]

By using this notation, Avo will grab the latitude and longitude from those particular columns to compose the map.

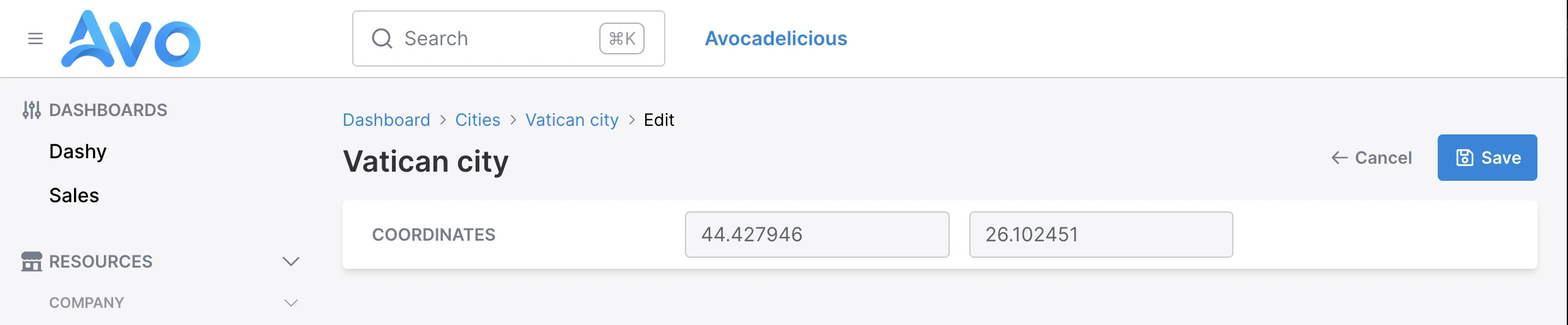

This will also render the Edit view with two separate fields to edit the coordinates.

-> mapkick_options

Since v3.16.2

The mapkick_options option allows you to customize the appearance and behavior of the map.

Using this option, you can provide a hash of configuration settings supported by the Mapkick gem, such as specifying the map style, enabling or disabling controls, or adding additional customizations.

Default

{}

Possible values

Accepts the options as specified in the Mapkick-gem.

For example:

field :coordinates,
  as: :location,
  stored_as: [:latitude, :longitude],
  mapkick_options: {
    style: 'mapbox://styles/mapbox/satellite-v9',
    controls: true
  }

By using mapkick_options, you can tailor the map's look and functionality to suit your application's requirements.
