Several fields in a cluster

Since v3.18.0

INFO

To fully understand this section, you should be familiar with the stacked field option and resource panels. These concepts will help you structure and customize your fields effectively.

The cluster DSL allows you to group multiple fields horizontally within a panel. This is useful for organizing related fields in a structured layout.

To enhance readability and maintain a well-organized UI, it is recommended to use the stacked option for fields inside clusters.

# app/avo/resources/person.rb
class Avo::Resources::Person < Avo::BaseResource
  def fields
    panel "Address" do
      cluster do
        field :street_address, stacked: true do
          "1234 Elm Street"
        end

        field :city, stacked: true do
          "Los Angeles"
        end

        field :zip_code, stacked: true do
          "15234"
        end
      end
    end
  end
end

-> divider

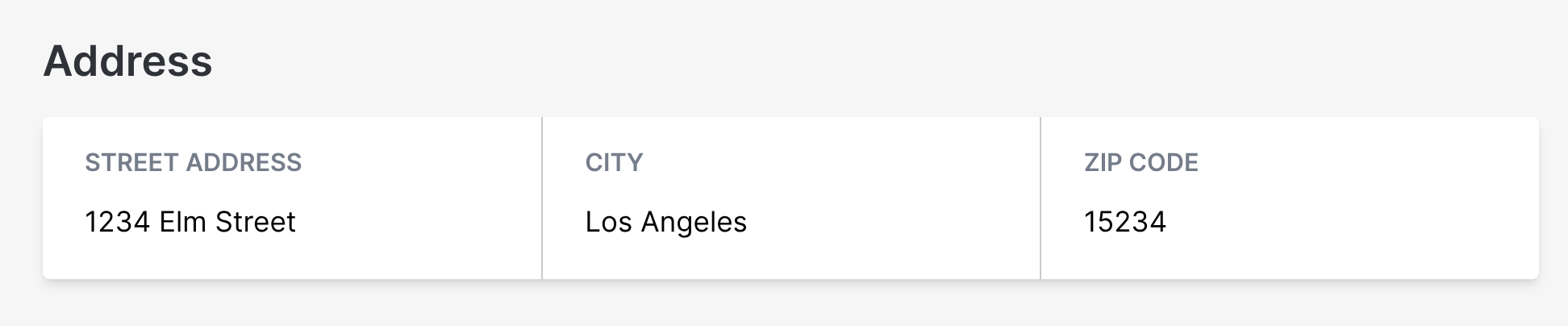

Since v3.21.0

Adds a horizontal divider between fields.

# app/avo/resources/person.rb
class Avo::Resources::Person < Avo::BaseResource
  def fields
    panel "Address" do
      cluster divider: true do
        field :street_address, stacked: true do
          "1234 Elm Street"
        end

        field :city, stacked: true do
          "Los Angeles"
        end

        field :zip_code, stacked: true do
          "15234"
        end
      end
    end
  end
end

Default value

false

Possible values

true, false
