Dynamic filters

The Dynamic filters make it so easy to add multiple, composable, and dynamic filters to the Index view.

The first thing you need to do is add the filterable: true attribute to the fields you need to filter through. We use ransack behind the scenes so it's essential to configure the ransackable_attributes list to ensure that every filterable field is incorporated within it.

Filter Combination Logic

When multiple filters are applied:

Filters on the same attribute are combined using OR conditions
Filters on different attributes are combined using AND conditions

For example, if you have two filters on the name field (one for "John" and one for "Jane"), the query will find records where the name is either "John" OR "Jane". However, if you have one filter on name for "John" and another on status for "active", the query will find records where the name is "John" AND the status is "active".

ruby

class Avo::Resources::Project < Avo::BaseResource
  def fields
    field :name, as: :text
    field :status, as: :status, filterable: true
    field :stage, as: :badge, filterable: true
    field :country, as: :country, filterable: true
  end
end

Authorize ransackable_attributes

ruby

class Project < ApplicationRecord
  def self.ransackable_attributes(auth_object = nil)
    ["status", "stage", "country"] # the array items should be strings not symbols
  end
end

# Or authorize ALL attributes at once

class Project < ApplicationRecord
  def self.ransackable_attributes(auth_object = nil)
    authorizable_ransackable_attributes
  end
end

WARNING

Ensure the array items are strings, not symbols.

This will make Avo add this new "Filters" button to the Index view of your resource.

When the user clicks the button, a new filters bar will appear below enabling them to add filters based on the attributes you marked as filterable. The user can add multiple filters for the same attribute if they desire so.

Filter types

The filter type determines the kind of input provided by the filter.

For instance, a text type filter will render a text input field, while a select type filter will render a dropdown menu with predefined options fetched from the field.

Conditions

Each filter type also offers a different set of conditions. Conditions specify how the input value should be applied to filter the data. For example, text filters have conditions such as Contains or Starts with, while number filters include = (equals) or > (greater than).

Query

Avo uses the input value and the specified condition to build a Ransack query. The filter conditions and input values are translated into Ransack predicates, which are then used to fetch the filtered data.

For instance, in the text filter example above, the Contains condition and the input value John are translated into a Ransack query resulting into the SQL LIKE operator to find all records where the name contains John.

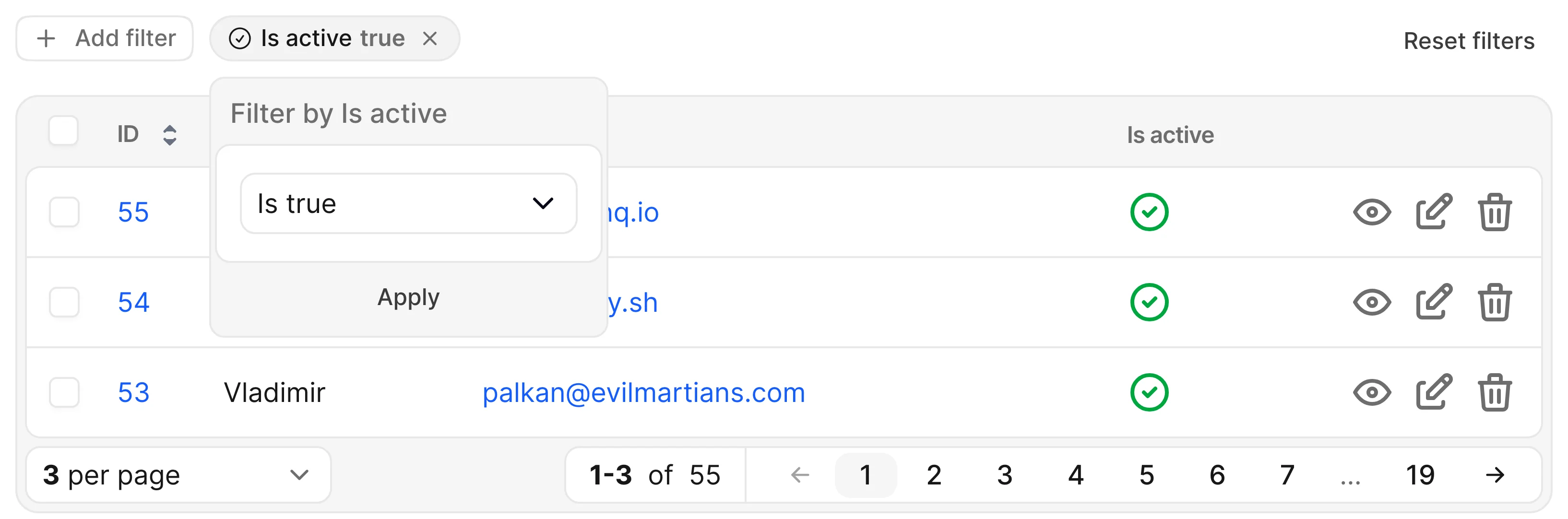

-> Boolean

Conditions

Is true
Is false
Is null
Is not null

ruby

{
  is_true: "Is true",
  is_false: "Is false",
  is_null: "Is null",
  is_not_null: "Is not null",
}.invert

Test it on avodemo, check the source code

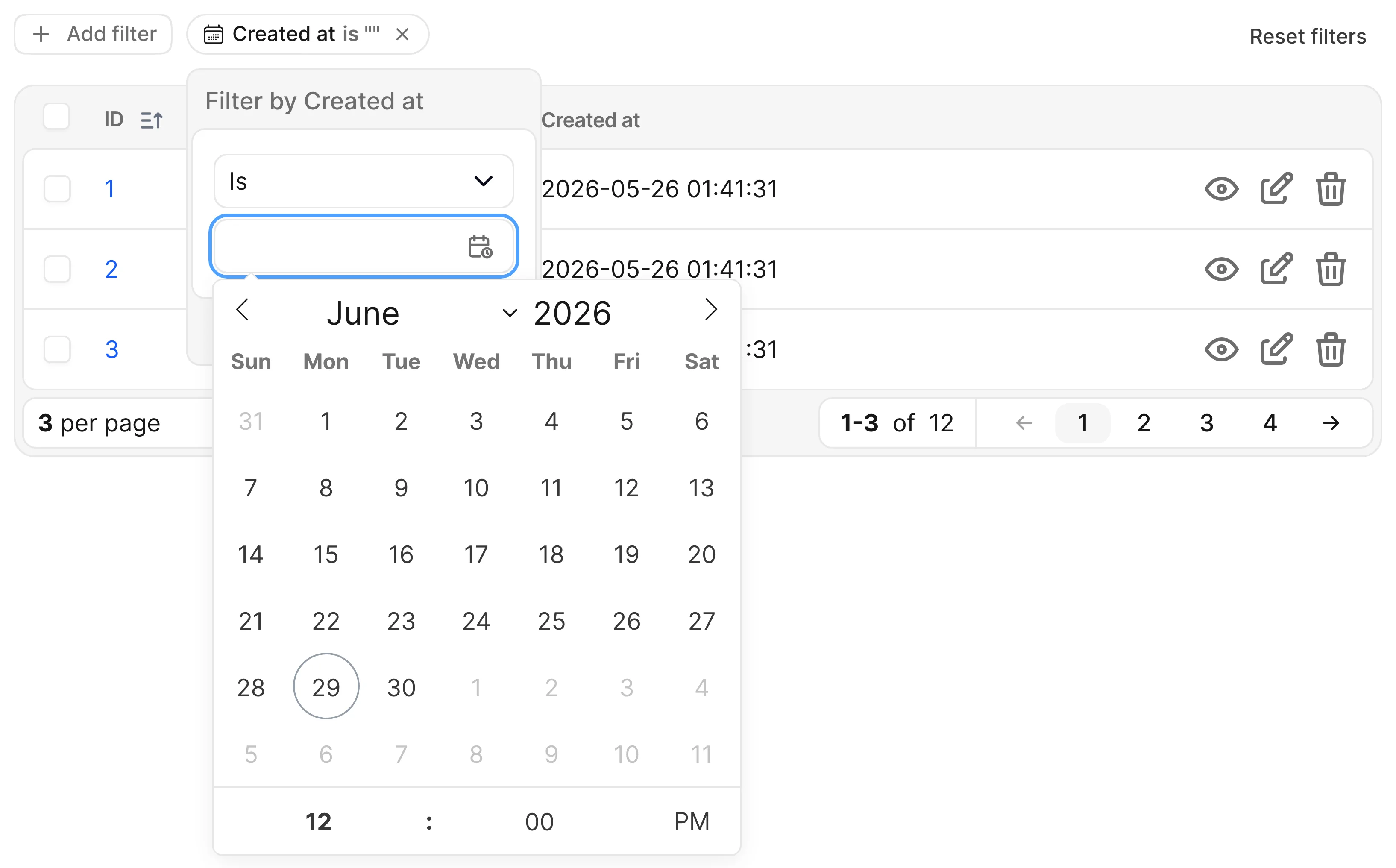

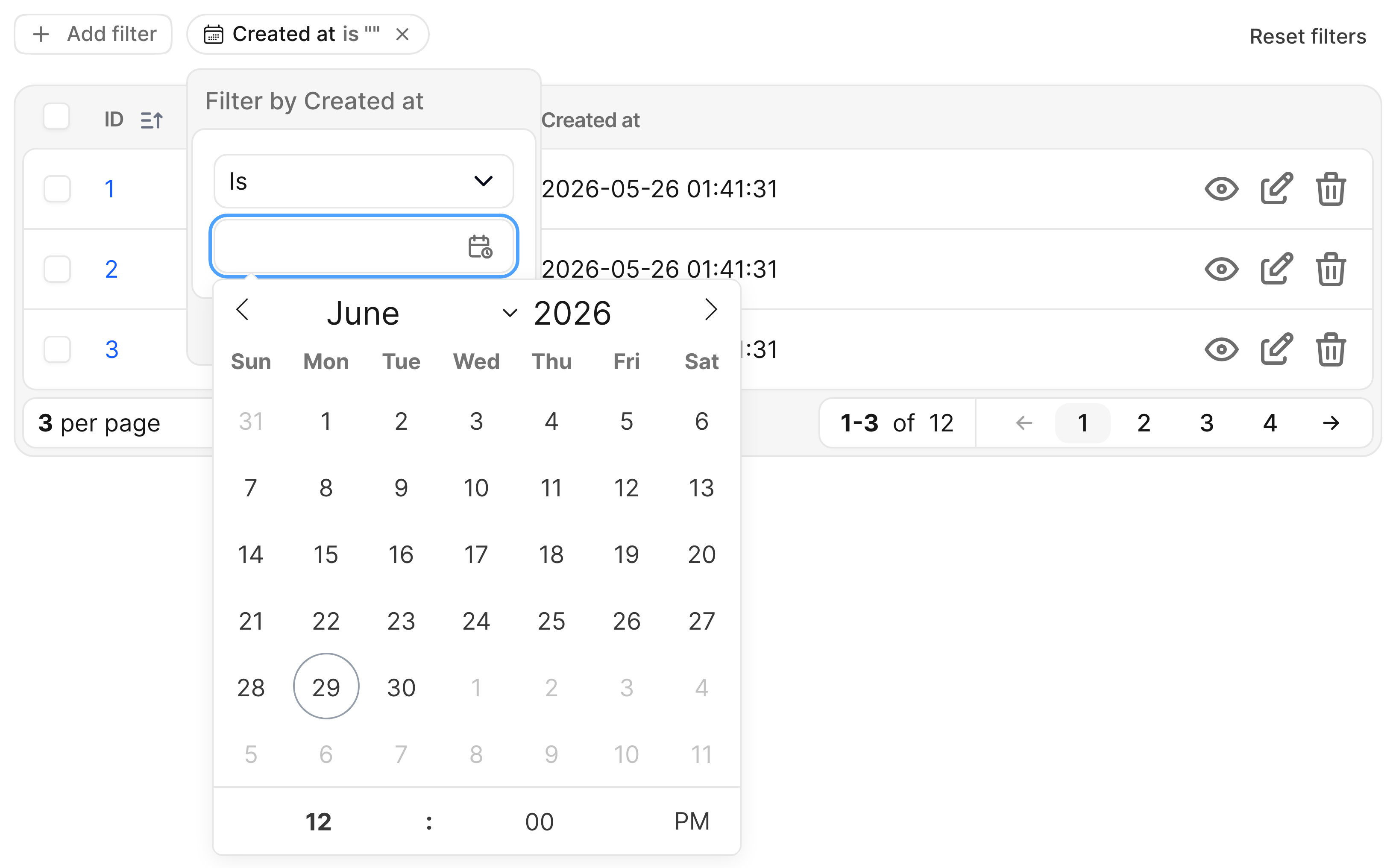

-> Date

Conditions

Is
Is not
Is on or before
Is on or after
Is within
Is null
Is not null

ruby

{
  is: "Is",
  is_not: "Is not",
  lte: "Is on or before",
  gte: "Is on or after",
  is_within: "Is within",
  is_null: "Is null",
  is_not_null: "Is not null",
}.invert

Test it on avodemo, check the source code

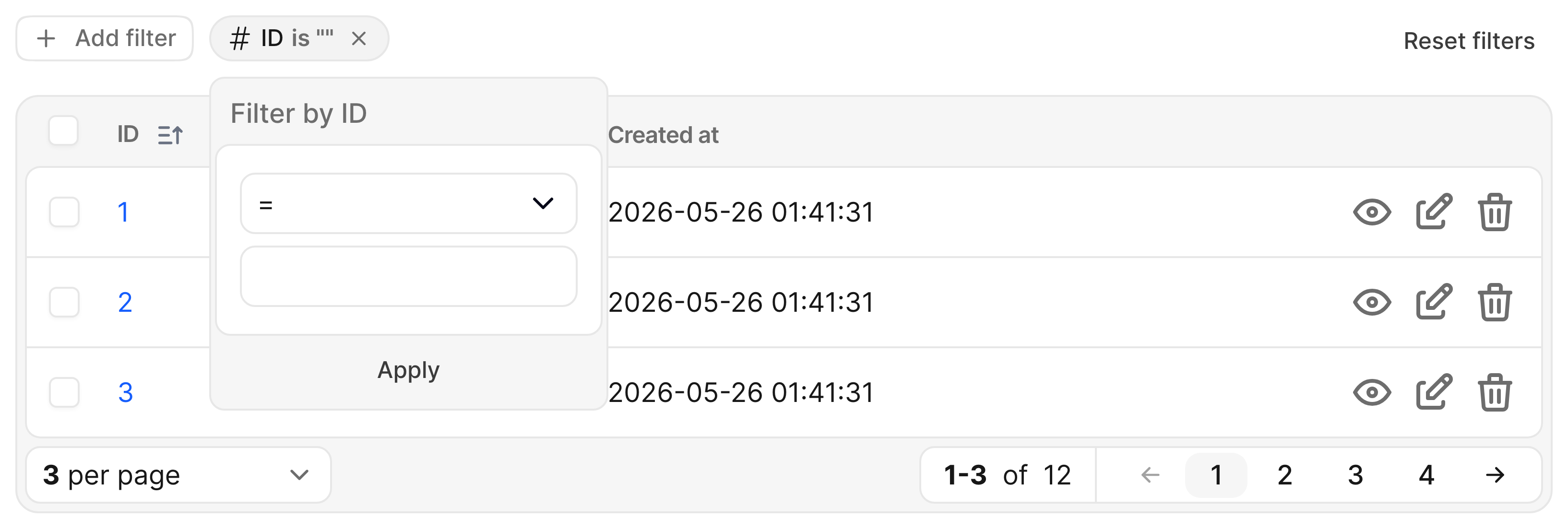

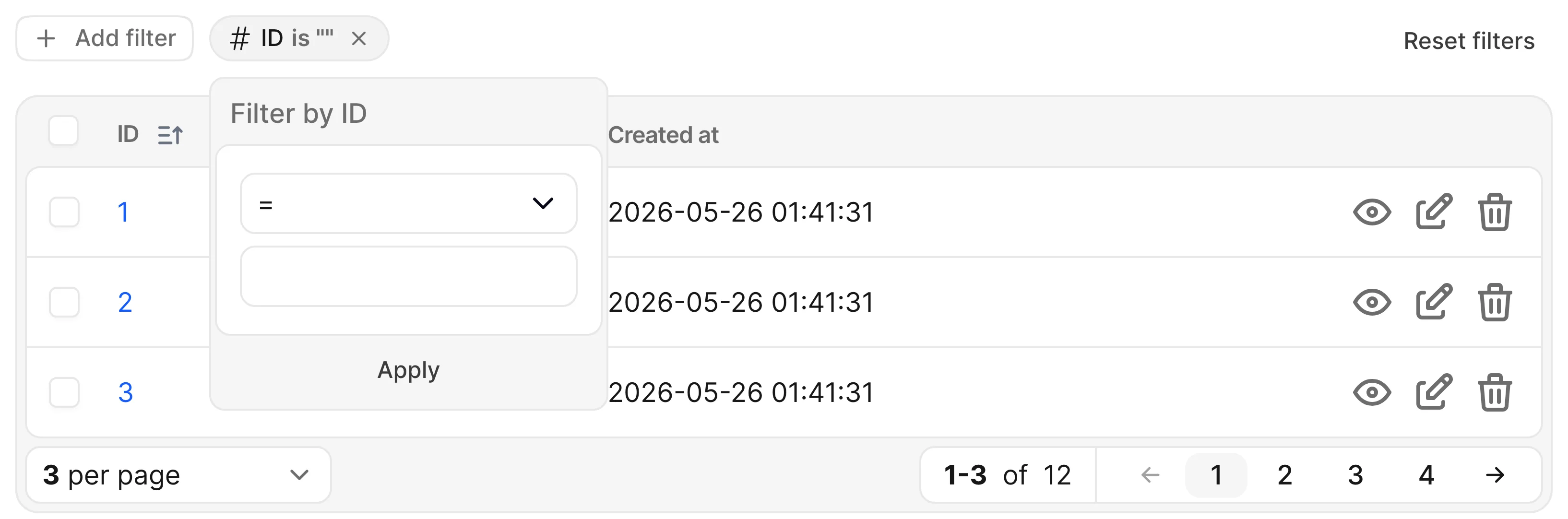

-> Number

Conditions

= (equals)
!= (is different)
> (greater than)
>= (greater than or equal to)
< (lower than)
<= (lower than or equal to)
Is within Since v3.10.11
Is null
Is not null

ruby

{
  is: "=",
  is_not: "!=",
  gt: ">",
  gte: ">=",
  lt: "<",
  lte: "<=",
  is_within: "Is within",
  is_null: "Is null",
  is_not_null: "Is not null",
}.invert

Test it on avodemo, check the source code

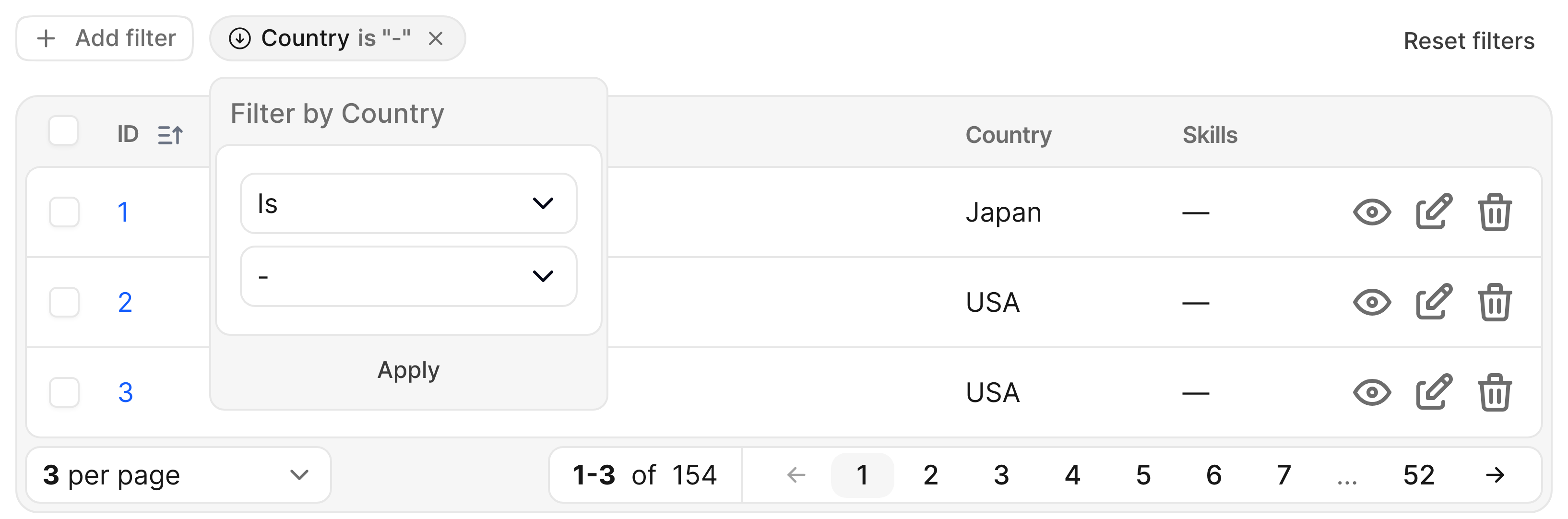

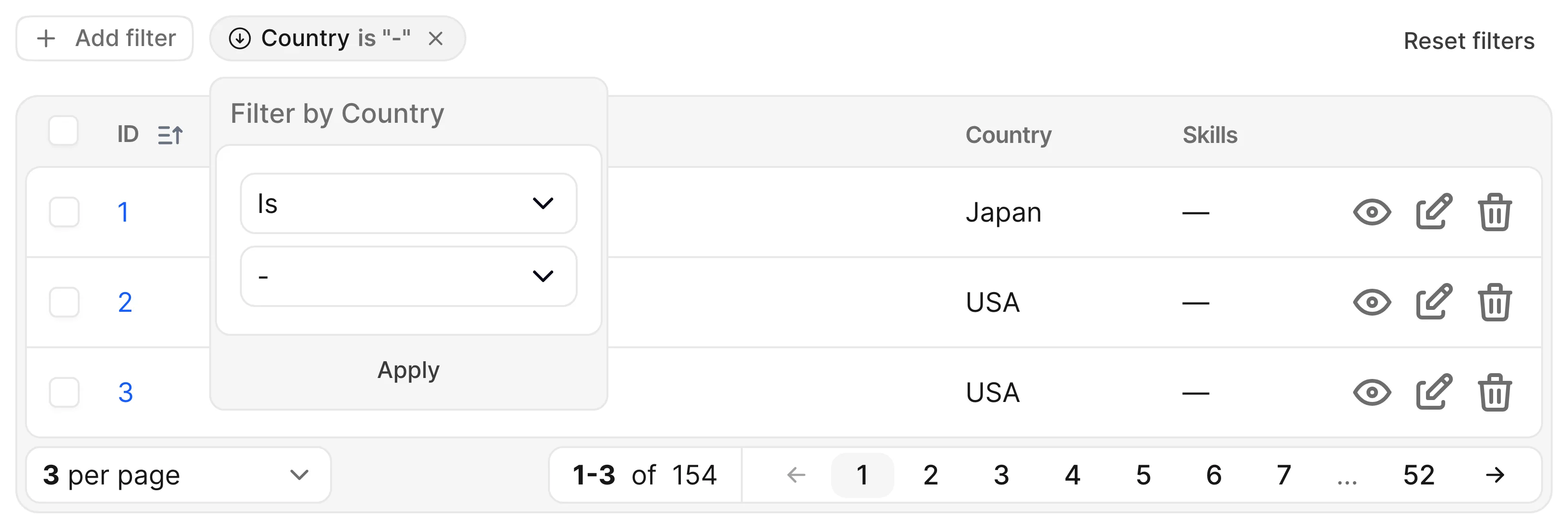

-> Select

Conditions

Is
Is not
Is null
Is not null

ruby

{
  is: "Is",
  is_not: "Is not",
  is_null: "Is null",
  is_not_null: "Is not null",
}.invert

Test it on avodemo, check the source code

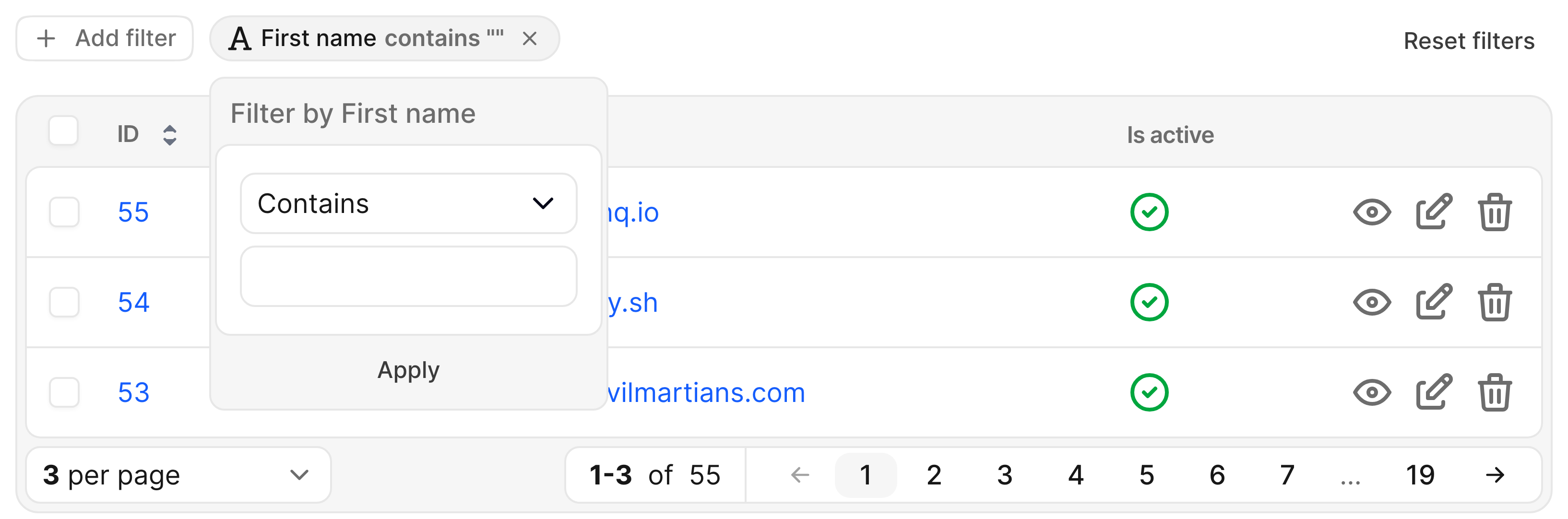

-> Text

Conditions

Contains
Does not contain
Is
Is not
Starts with
Ends with
Is null
Is not null
Is present
Is blank

ruby

{
  contains: "Contains",
  does_not_contain: "Does not contain",
  is: "Is",
  is_not: "Is not",
  starts_with: "Starts with",
  ends_with: "Ends with",
  is_null: "Is null",
  is_not_null: "Is not null",
  is_present: "Is present",
  is_blank: "Is blank",
}.invert

Test it on avodemo, check the source code

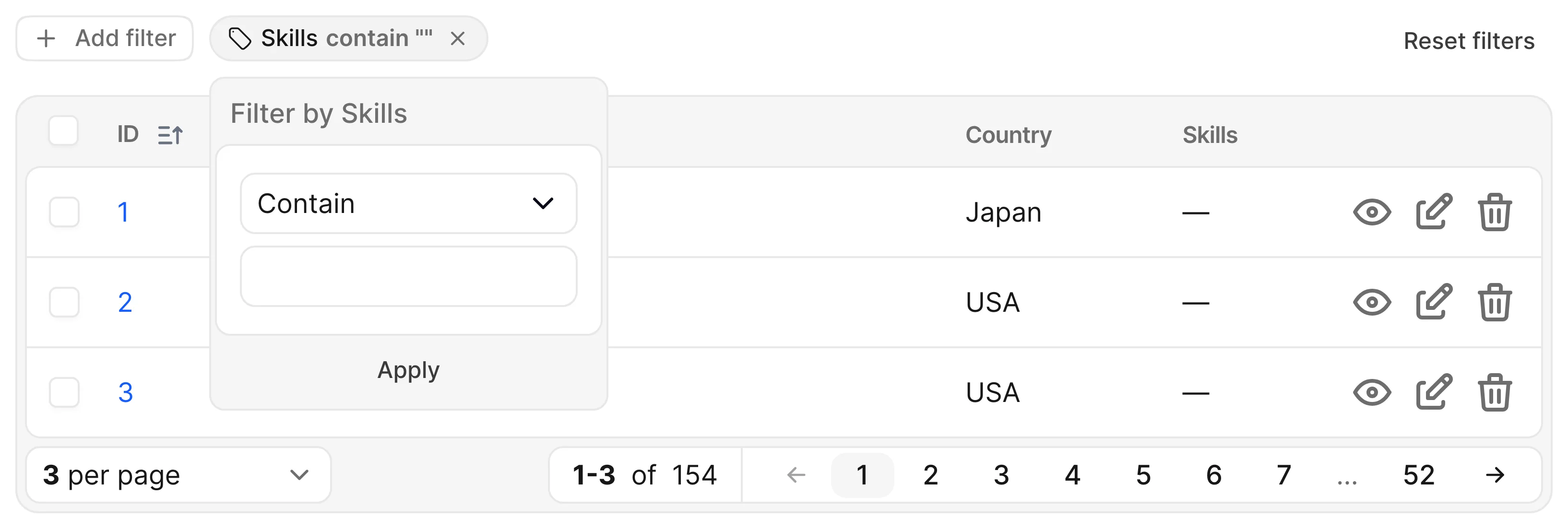

-> Tags

Conditions

Are
Contain
Overlap
Contained in (active_record_extended gem required)

ruby

{
 array_is: "Are",
 array_contains: "Contain",
 array_overlap: "Overlap",
 array_contained_in: "Contained in" # (active_record_extended gem required)
}.invert

WARNING

Contained in will not work when using the acts-as-taggable-on gem.

Test it on avodemo, check the source code

INFO

The source code uses custom dynamic filters DSL available Since v3.10.0

Check how to do a more advanced configuration on the custom dynamic filters section.

Options

You can have a few customization options available that you can add in your avo.rb initializer file.

ruby

Avo.configure do |config|
  # Other Avo configurations
end

if defined?(Avo::DynamicFilters)
  Avo::DynamicFilters.configure do |config|
    config.button_label = "Advanced filters"
    config.always_expanded = true
  end
end

`-> button_label`

This will change the label on the expand label.

`-> always_expanded`

You may opt-in to have them always expanded and have the button hidden.

Field to filter matching

On versions lower than 3.10.0 the filters are not configurable so each field will have a dedicated filter type. Check how to do a more advanced configuration on the custom dynamic filters section.

Field-to-filter matching in versions lower than 3.10.0:

ruby

def field_to_filter(type)
  case type.to_sym
  when :boolean
    :boolean
  when :date, :date_time, :time
    :date
  when :id, :number, :progress_bar
    :number
  when :select, :badge, :country, :status
    :select
  when :text, :textarea, :code, :markdown, :password, :trix
    :text
  else
    :text
  end
end

Caveats

At some point we'll integrate the Basic filters into the dynamic filters bar. Until then, if you have both basic and dynamic filters on your resource you'll have two Filters buttons on your Index view.

To mitigate that you can toggle the always_expanded option to true.

Custom Dynamic Filters

Beta Since v3.10.0

Dynamic filters are great but strict, as each field creates a specific filter type, each with its own icon and query. The query remains static, targeting only that particular field. Since version 3.10.0, dynamic filters have become customizable and, even better, can be declared without being bound to a field.

There are two ways to define custom dynamic filters: the field's filterable option and the dynamic_filter method.

Defining custom dynamic filters

To start customizing a dynamic filter from the filterable option, change its value to a hash:

ruby

field :first_name,
  as: :text,
  filterable: true
  filterable: { }

From this hash, you can configure several options specified below.

Alternatively, you can define a custom dynamic filter using the dynamic_filter method, which should be called inside the filters method:

ruby

def filters
  # ...
  dynamic_filter :first_name
  # ...
end

Each option specified below can be used as a key in the hash definition or as a keyword argument in the method definition.

Filters order

The filter order is computed. Dynamic filters defined by the dynamic_filter method will respect the definition order and will be rendered first in the filter list. Filters declared using the field's filterable option will be sorted by label.

Custom Dynamic Filter IDs

When using a custom dynamic filter, the generated filter ID may not directly correspond to a database column. In such cases, you should use the query_attributes option to specify which database columns the filter should apply to.

For example, consider a City model with a population column in the database:

ruby

# The filter ID is custom_population
# However, the filter should apply the query to the population attribute.
dynamic_filter :custom_population, query_attributes: :population

`-> label`

Customize filter's label

Default value

Field's / filter's ID humanized.

Possible values

Any string

`-> icon`

Customize filter's icon. Check icons documentation

Default value

Boolean filter - heroicons/outline/check-circle
Calendar filter - heroicons/outline/calendar-days
Number filter - heroicons/outline/hashtag
Select filter - heroicons/outline/arrow-down-circle
Tags filter - heroicons/outline/tag
Text filter - avo/font

Possible values

Any icon from avo or heroicons.

`-> type`

Customize filter's type

Default value

Computed from field using field_to_filter method.

`-> query`

INFO

Since v3.11.8 the default filtering system is no longer applied when a query is specified on a dynamic filter.

Customize filter's query

Default value

Applies the condition to the field's attribute. For example, if the field is first_name, the condition is contains, and the value is Bill, the query will restrict to all records where the first name contains Bill.

Possible values

Any lambda function.

Within the function, you have access to query and filter_param as well as all attributes of Avo::ExecutionContext.

filter_param is an Avo object that stores the filter's id, the applied condition and the value.

Usage example:

ruby

# Using field's filterable option
field :first_name,
  as: :text,
  filterable: {
    # ...
    conditions: {
      case_sensitive: "Is (case sensitive)",
      not_case_sensitive: "Is (case insensitive)"
    }.invert,
    query: -> {
      case filter_param.condition.to_sym
      when :case_sensitive
        query.where("name = ?", filter_param.value)
      when :not_case_sensitive
        query.where("LOWER(name) = ?", filter_param.value.downcase)
      end
    }
    # ...
  }

# Using dynamic_filter method
dynamic_filter :first_name,
  conditions: {
    case_sensitive: "Is (case sensitive)",
    not_case_sensitive: "Is (case insensitive)"
  }.invert,
  query: -> {
    case filter_param.condition.to_sym
    when :case_sensitive
      query.where("name = ?", filter_param.value)
    when :not_case_sensitive
      query.where("LOWER(name) = ?", filter_param.value.downcase)
    end
  }

`-> conditions`

Customize filter's conditions

Default value

Check default conditions for each filter type above on this page.

Possible values

A hash with the desired key-values to customize available conditions
An empty hash {} to hide conditions dropdown and use the first default condition

Usage examples

Custom conditions

ruby

# Using field's filterable option
field :first_name,
  as: :text,
  filterable: {
    # ...
    conditions: {
      case_sensitive: "Case sensitive",
      not_case_sensitive: "Not case sensitive"
    }.invert
    # ...
  }

# Using dynamic_filter method
dynamic_filter :first_name,
  conditions: {
    case_sensitive: "Case sensitive",
    not_case_sensitive: "Not case sensitive"
  }.invert

When set to an empty hash ({}), this option hides the conditions dropdown and automatically applies the first default condition for each filter type. This is particularly useful when you want to simplify the filter interface by removing the conditions selection, especially for filters where only one condition makes sense.

ruby

dynamic_filter :last_name,
  type: :select,
  conditions: {},
  options: User.pluck(:last_name).compact

ruby

field :department,
  as: :select,
  filterable: {
    conditions: {},
    type: :select,
    options: ["Engineering", "Marketing", "Sales", "Support"]
  }

INFO

When conditions: {} is used, the filter will automatically use the first condition from the default conditions list for that filter type. For example, a select filter will use "Is" condition, and a text filter will use "Contains" condition.

`-> query_attributes`

Customize filter's query attributes

Default value

Field's / filter's id

Possible values

Any model DB column(s). Use an array of symbols for multiple columns or a single symbol for a single column. If your model has DB columns like first_name and last_name, you can combine both on a single filter:

ruby

# Using field's filterable option
field :name,
  as: :text,
  filterable: {
    # ...
    query_attributes: [:first_name, :last_name]
    # ...
  }

# Using dynamic_filter method
dynamic_filter :name,
  type: :text,
  query_attributes: [:first_name, :last_name]

You can also add query attributes for a belongs_to association. For example, with a model that belongs to User:

ruby

# Using field's filterable option
field :user,
  as: :belongs_to,
  filterable: {
    label: "User (email & first_name)",
    icon: "heroicons/solid/users",
    query_attributes: [:user_email, :user_first_name]
  }

# Using dynamic_filter method
dynamic_filter label: "User (email & first_name)",
  icon: "heroicons/solid/users",
  query_attributes: [:user_email, :user_first_name]

This is possible due to a Ransack feature. To use it, you need to add the association name before the attribute.

`-> suggestions`

Suggestions work on filters that provide text input, enhancing the user experience by offering relevant options. This functionality is especially useful in scenarios where users might need guidance or where the filter values are numerous or complex.

Default value

nil

INFO

Since v3.11.8 on tags fields the suggestions are fetched from the field.

Possible values

Array of strings

ruby

# Using field's filterable option
field :first_name,
  as: :text,
  filterable: {
    # ...
    suggestions: ["Avo", "Cado"]
    # ...
  }

# Using dynamic_filter method
dynamic_filter :first_name,
  suggestions: ["Avo", "Cado"]

Proc that returns an array of strings

Since v3.15.1 when the filter is applied to an association, the parent_record becomes accessible within the suggestions block.

ruby

# Using field's filterable option
field :first_name,
  as: :text,
  filterable: {
    # ...
    suggestions: -> { ["Avo", "Cado", params[:extra_suggestion]] }
    # ...
  }

# Using dynamic_filter method
dynamic_filter :first_name,
  suggestions: -> { ["Avo", "Cado", params[:extra_suggestion]] }

Array of hashes with the keys value, label and optionally an avatar

Since v3.11.8

Applicable only to filters with type tags.

Direct assignProc

ruby

# Using field's filterable option
field :tags,
  as: :tags,
  filterable: {
    # ...
    suggestions: [
      {
        value: 1,
        label: 'one',
        avatar: 'https://images.unsplash.com/photo-1560363199-a1264d4ea5fc?ixlib=rb-1.2.1&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&w=256&h=256&fit=crop',
      },
      # ...
    ]
    # ...
  }

# Using dynamic_filter method
dynamic_filter :tags,
  suggestions: [
    {
      value: 1,
      label: 'one',
      avatar: 'https://images.unsplash.com/photo-1560363199-a1264d4ea5fc?ixlib=rb-1.2.1&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&w=256&h=256&fit=crop',
    },
    # ...
  ]

ruby

# Using field's filterable option
field :tags,
  as: :tags,
  filterable: {
    # ...
    suggestions: -> {
      [
        {
          value: 1,
          label: 'one', # or params[:something]
          avatar: 'https://images.unsplash.com/photo-1560363199-a1264d4ea5fc?ixlib=rb-1.2.1&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&w=256&h=256&fit=crop',
        },
        # ...
      ]
    }
    # ...
  }

# Using dynamic_filter method
dynamic_filter :tags,
  suggestions: -> {
    [
      {
        value: 1,
        label: 'one', # or params[:something]
        avatar: 'https://images.unsplash.com/photo-1560363199-a1264d4ea5fc?ixlib=rb-1.2.1&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&w=256&h=256&fit=crop',
      },
      # ...
    ]
  }

`-> fetch_values_from`

Since v3.13

WARNING

This option is compatible only with tags filters.

In some cases, you may need to retrieve values dynamically from an API. The fetch_values_from option allows you to provide a URL from which the filter will suggest values, functioning similarly to the fetch_values_from option in the tags field.

When a user searches for a record, the filter's input will send a request to the server to fetch records that match the query.

Default value

nil

INFO

If you're using a filterable field the fetch_values_from are fetched from the field.

ruby

field :tags, as: :tags,
  fetch_values_from: -> { "/avo-filters/resources/cities/tags" }
  filterable: true

Possible values

String

ruby

fetch_values_from: "/avo-filters/resources/cities/tags"

Proc that evaluates to a string.

ruby

fetch_values_from: -> { "/avo-filters/resources/cities/tags" }

The endpoint should handle two different scenarios:

Search functionality: When a user types in the filter input, the endpoint receives the user input as q in the params (params["q"])
Initial load: When the filter already has selected values (like on page load), the endpoint receives an array of values in params[:value] to fetch the corresponding labels

The endpoint should return an array of objects with the keys value, label and optionally avatar.

app/controllers/avo/cities_controller.rbconfig/routes.rb

ruby

class Avo::CitiesController < Avo::ResourcesController
  def tags
    if params[:value].present?
      # Handle initial load: return labels for selected values
      # params[:value] contains an array of selected values
      selected_cities = City.where(id: params[:value])
      render json: selected_cities.map do |city|
        {
          value: city.id,
          label: city.name,
          avatar: city.avatar_url
        }
      end
    elsif params["q"].present?
      # Handle search: return cities matching the query
      cities = City.where("name ILIKE ?", "%#{params["q"]}%").limit(10)
      render json: cities.map do |city|
        {
          value: city.id,
          label: city.name,
          avatar: city.avatar_url
        }
      end
    else
      # Handle empty state: return some default suggestions
      render json: [
        {
          value: 1,
          label: "New York",
          avatar: "https://images.unsplash.com/photo-1560363199-a1264d4ea5fc?ixlib=rb-1.2.1&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&w=256&h=256&fit=crop"
        }
      ]
    end
  end
end

ruby

Rails.application.routes.draw do
  # your routes...
end

if defined? ::Avo
  Avo::Engine.routes.draw do
    scope :resources do
      get "cities/tags", to: "cities#tags"
    end
  end
end

`-> options`

Since v3.10.10

Customize the options for select type filters. This is available only for select type filters and determines the options visible in the select dropdown.

Default value

Fetched from field if bond to a field or []

Possible values

An array or hash where the key-value pairs represent the options.

If a hash is provided, the key is the option label and the value is the option value.
If an array is provided, the array elements are used as both the option value and the option label.

Usage examples

Array

ruby

dynamic_filter :version,
  type: :select,
  options: ["Label 1", "Label 2"]

Hash (with invert)

ruby

dynamic_filter :version,
  type: :select,
  options: {
    value_1: "Label 1",
    value_2: "Label 2"
  }.invert

Hash (without invert)

ruby

dynamic_filter :version,
  type: :select,
  options: {
    "Label 1" => :value_1,
    "Label 2" => :value_2
  }

`-> render_apply_button`

Controls whether the "Apply" button should be rendered in the filter interface.

Default value

true

Possible values

Boolean value (true or false).

When set to false, the apply button will be hidden from the filter interface. This is particularly useful when combined with apply_on_select: true to create an immediate filtering experience.

Usage examples

ruby

dynamic_filter :status,
  type: :select,
  render_apply_button: false

ruby

field :status,
  as: :select,
  filterable: {
    render_apply_button: false,
    apply_on_select: true,
    options: ["active", "inactive", "pending"]
  }

`-> apply_on_select`

Controls whether the filter should be applied immediately when the selected value changes, without requiring the user to click the "Apply" button.

Default value

false

Possible values

Boolean value (true or false).

When set to true, the filter will automatically apply as soon as the user selects or changes a value. This creates a more responsive user experience, especially when combined with render_apply_button: false.

Usage examples

ruby

dynamic_filter :category,
  type: :select,
  apply_on_select: true,
  render_apply_button: false

ruby

field :priority,
  as: :select,
  filterable: {
    apply_on_select: true,
    render_apply_button: false,
    options: ["high", "medium", "low"]
  }

Guides & Tutorials

-> How to filter associations

Learn how to effectively filter records based on their associations in Avo. This video tutorial demonstrates how to set up and use dynamic filters to query records through the attributes of their associations, enabling powerful and flexible data filtering capabilities.

`belongs_to` example

ruby

# app/avo/resources/post.rb
class Avo::Resources::Post < Avo::BaseResource
  # Using field's filterable option
  def fields
    field :user,
      as: :belongs_to,
      filterable: {
        label: "User (email & first_name)",
        icon: "heroicons/solid/users",
        query_attributes: [:user_email, :user_first_name]
      }
  end

  # OR using dynamic_filter method
  def filters
    dynamic_filter label: "User (email & first_name)",
      icon: "heroicons/solid/users",
      query_attributes: [:user_email, :user_first_name]
  end
end

`has_many` example

ruby

class Avo::Resources::Author < Avo::BaseResource
  self.record_selector = false

  def fields
    field :preview, as: :preview
    field :book_list, only_on: :preview do
      tag.div do
        tag.ul do
          safe_join(
            record.books.map do |book|
              tag.li("#{book.title} (#{book.genre})")
            end
          )
        end
      end
    end

    field :name, filterable: true
    # Filter the books by title and genre
    field :books, as: :has_many, filterable: {
      query_attributes: [:books_title, :books_genre]
    }
  end
end

Dynamic filters ​

Filter types ​

Conditions ​

Query ​

-> Boolean

Conditions ​

-> Date

Conditions ​

-> Number

Conditions ​

-> Select

Conditions ​

-> Text

Conditions ​

-> Tags

Conditions ​

Options ​

-> button_label

-> always_expanded

Field to filter matching ​

Caveats ​

Custom Dynamic Filters ​

Defining custom dynamic filters ​

-> label

Default value ​

Possible values ​

-> icon

Default value ​

Possible values ​

-> type

Default value ​

Possible values ​

-> query

Default value ​

Possible values ​

-> conditions

Default value ​

Possible values ​

Usage examples ​

Custom conditions ​

Hide conditions dropdown ​

-> query_attributes

Default value ​

Possible values ​

-> suggestions

Default value ​

Possible values ​

-> fetch_values_from

Default value ​

Possible values ​

-> options

Default value ​

Possible values ​

Usage examples ​

Array ​

Hash (with invert) ​

Hash (without invert) ​

-> render_apply_button

Default value ​

Possible values ​

Usage examples ​

-> apply_on_select

Default value ​

Possible values ​

Usage examples ​

Guides & Tutorials ​

-> How to filter associations

belongs_to example ​

has_many example ​

Dynamic filters

Filter types

Conditions

Query

Conditions

Conditions

Conditions

Conditions

Conditions

Conditions

Options

`-> button_label`

`-> always_expanded`

Field to filter matching

Caveats

Custom Dynamic Filters

Defining custom dynamic filters

`-> label`

Default value

Possible values

`-> icon`

Default value

Possible values

`-> type`

Default value

Possible values

`-> query`

Default value

Possible values

`-> conditions`

Default value

Possible values

Usage examples

Custom conditions

Hide conditions dropdown

`-> query_attributes`

Default value

Possible values

`-> suggestions`

Default value

Possible values

`-> fetch_values_from`

Default value

Possible values

`-> options`

Default value

Possible values

Usage examples

Array

Hash (with invert)

Hash (without invert)

`-> render_apply_button`

Default value

Possible values

Usage examples

`-> apply_on_select`

Default value

Possible values

Usage examples

Guides & Tutorials

`belongs_to` example

`has_many` example
