Field options

Avo fields are dynamic and can be configured using field options.

There are quite a few common field options described on this page that will work with most fields (but some might not support them), and some custom field options that only some fields respond to that are described on each field page.

Common field option example

ruby

# disabled will disable the field on the `Edit` view
field :name, as: :text, disabled: true
field :status, as: :select, disabled: true

Custom field option example

ruby

# options will set the dropdown options for a select field
field :status, as: :select, options: %w[first second third]

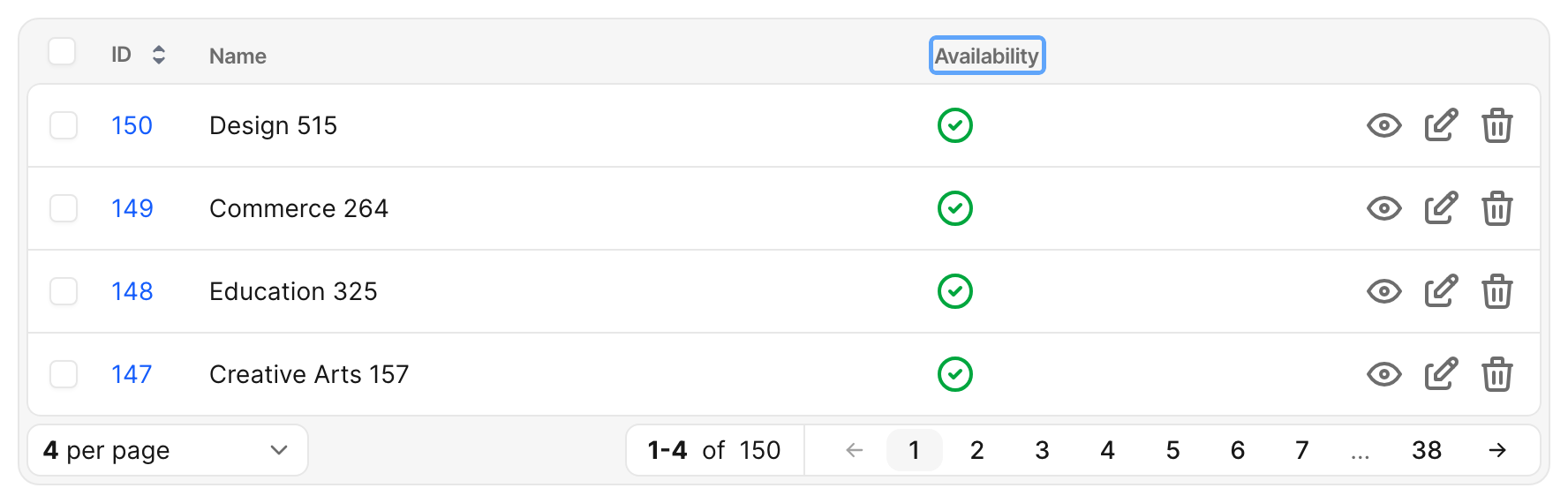

Change field name

To customize the label, you can use the name property to pick a different label.

ruby

field :is_available, as: :boolean, name: "Availability"

Showing / Hiding fields on different views

There will be cases where you want to show fields on different views conditionally. For example, you may want to display a field in the New and Edit views and hide it on the Index and Show views.

For scenarios like that, you may use the visibility helpers hide_on, show_on, only_on, and except_on methods. Available options for these methods are: :new, :edit, :index, :show, :forms (both :new and :edit) and :all (only for hide_on and show_on).

Version 3 introduces the :display option that is the opposite of :forms, referring to both, :index and :show

Be aware that a few fields are designed to override those options (ex: the id field is hidden in Edit and New).

ruby

field :body, as: :text, hide_on: [:index, :show]

Please read the detailed views page for more info.

Field Visibility

You might want to restrict some fields to be accessible only if a specific condition applies. For example, hide fields if the user is not an admin.

You can use the visible block to do that. It can be a boolean or a lambda. Inside the lambda, we have access to the context object and the current resource. The resource has the current record object, too (resource.record).

ruby

field :is_featured, as: :boolean, visible: -> { context[:user].is_admin? }  # show field based on the context object
field :is_featured, as: :boolean, visible: -> { resource.name.include? 'user' } # show field based on the resource name
field :is_featured, as: :boolean, visible: -> { resource.record.published_at.present? } # show field based on a record attribute

WARNING

On form submissions, the visible block is evaluated in the create and update controller actions. That's why you have to check if the resource.record object is present before trying to use it.

ruby

# `resource.record` is nil when submitting the form on resource creation
field :name, as: :text, visible -> { resource.record.enabled? }

# Do this instead
field :name, as: :text, visible -> { resource.record&.enabled? }

Computed Fields

You might need to show a field with a value you don't have in a database row. In that case, you may compute the value using a block that receives the record (the actual database record), the resource (the configured Avo resource), and the current view. With that information, you can compute what to show on the field in the Index and Show views.

ruby

field 'Has posts', as: :boolean do
  record.posts.present?
rescue
  false
end

INFO

Computed fields are displayed only on the Show and Index views.

This example will display a boolean field with the value computed from your custom block.

Fields Formatter

Sometimes you will want to process the database value before showing it to the user.

There are several ways to format fields.

Common formatting options

In all cases, you have access to a bunch of variables inside this block, all the defaults that Avo::ExecutionContext provides plus value, record, resource, view and field.

`-> format_using`

Format the field value using a block.

INFO

Notice that this block will have effect on all views.

ruby

field :is_writer, as: :text, format_using: -> {
  if view.form?
    value
  else
    value.present? ? '👍' : '👎'
  end
}

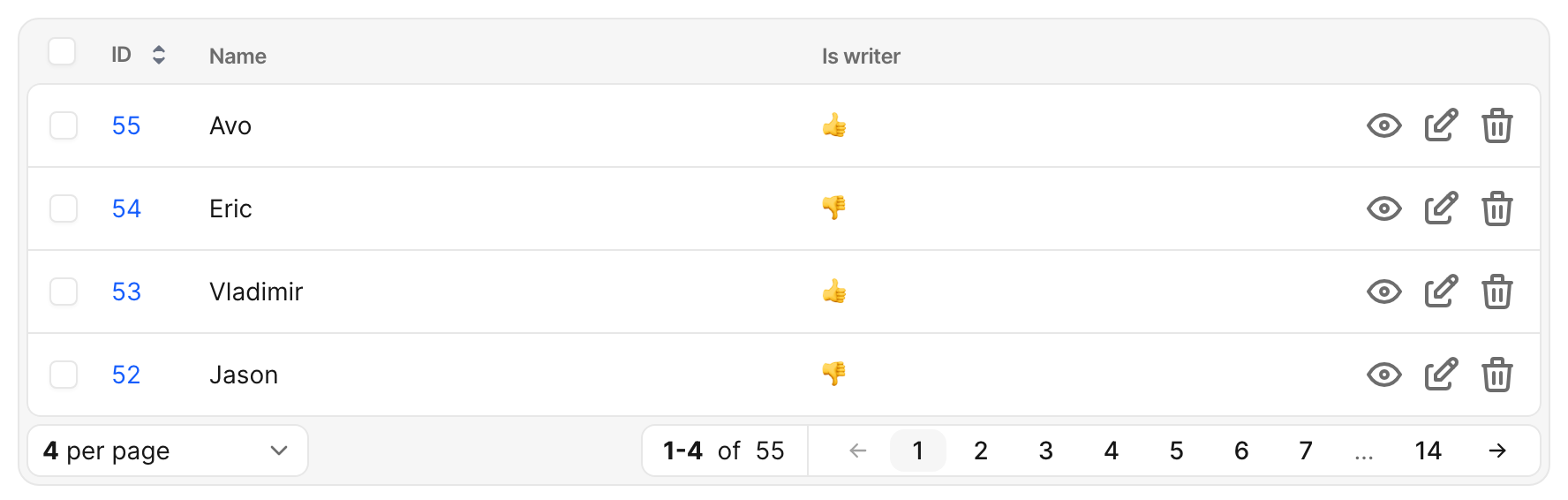

This example snippet will make the :is_writer field generate 👍 or 👎 emojis instead of 1 or 0 values on display views and the values 1 or 0 on form views.

Another example:

ruby

field :company_url,
  as: :text,
  format_using: -> {
    if view.new? || view.edit?
      value
    else
      link_to(value, value, target: "_blank")
    end
  } do
  main_app.companies_url(record)
end

`-> format_{view}_using`

Avo provides helper methods to format fields based on the current view.

format_index_using - Format the field value only for the index view
format_show_using - Format the field value only for the show view
format_edit_using - Format the field value only for the edit view
format_new_using - Format the field value only for the new view
format_form_using - Format the field value only for the forms view (new and edit)
format_display_using - Format the field value only for the display view (index and show)

This methods are available for all fields.

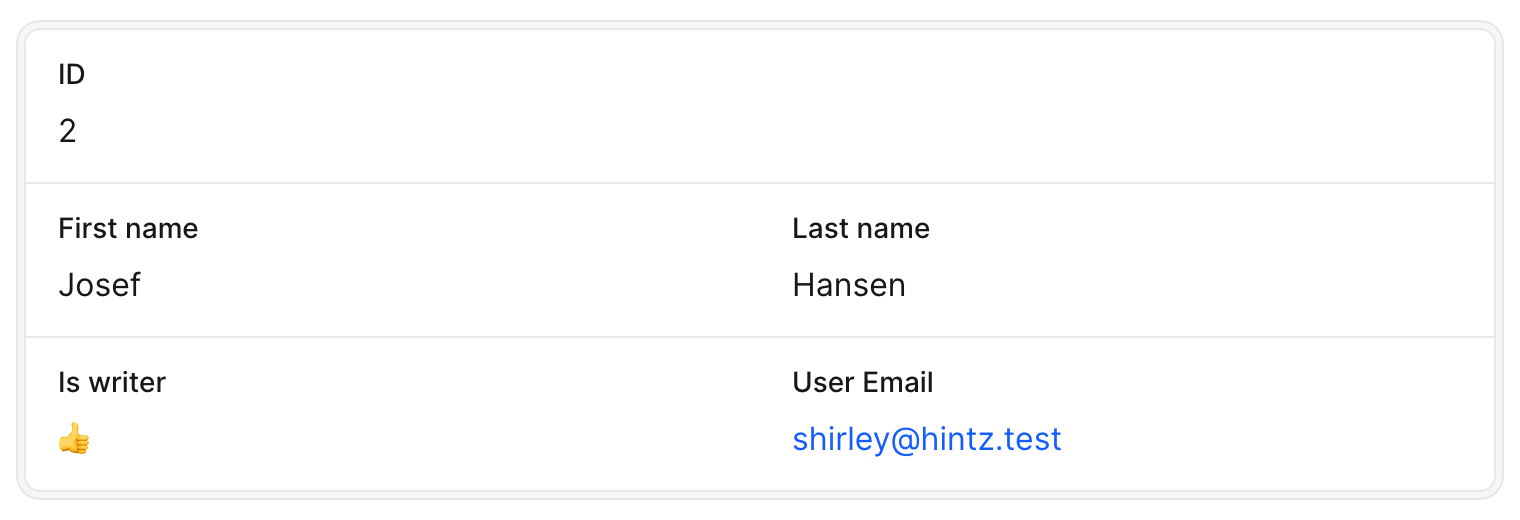

Example on how to format a field in the index and show views:

ruby

field :is_writer, format_display_using: -> { value.present? ? '👍' : '👎' }

Formatting with Rails helpers

You can also format using Rails helpers like number_to_currency (note that view_context is used to access the helper):

ruby

field :price, as: :number, format_using: -> { view_context.number_to_currency(value) }

Parse value before update

When it's necessary to parse information before storing it in the database, the update_using option proves to be useful. Inside the block you can access the raw value from the form, and the returned value will be saved in the database.

ruby

field :metadata,
  as: :code,
  update_using: -> do
    ActiveSupport::JSON.decode(value)
  end

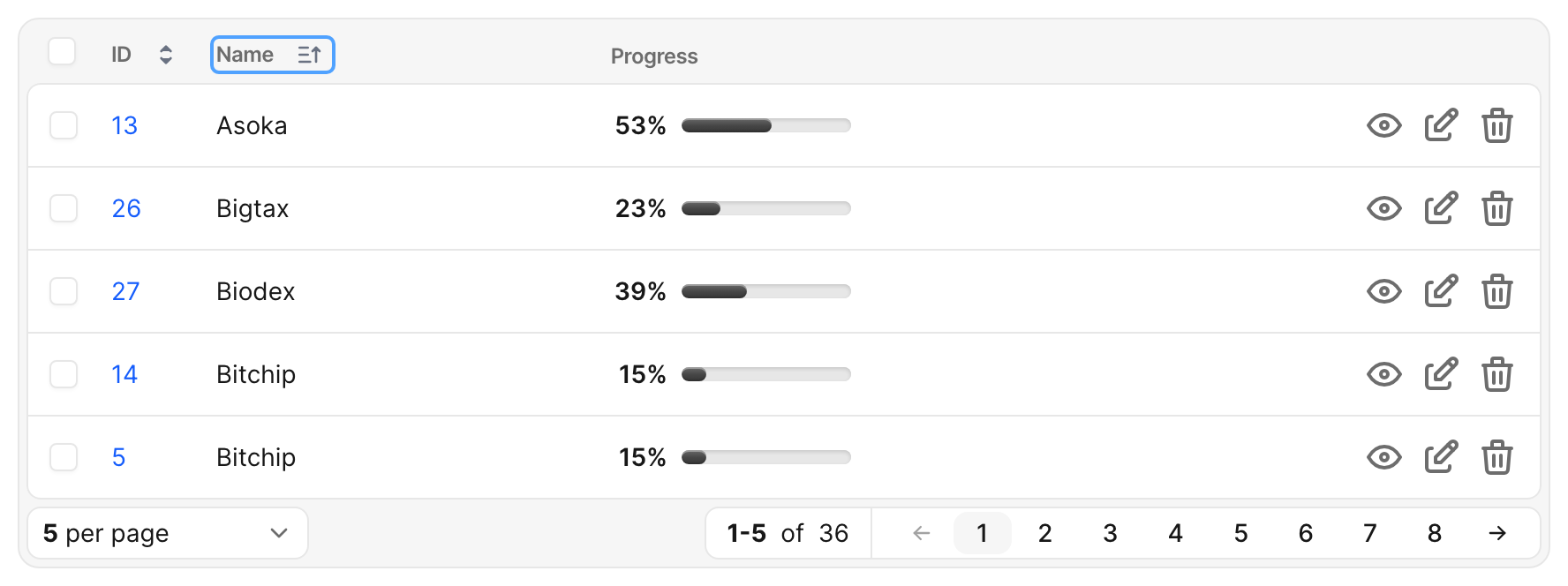

Sortable fields

One of the most common operations with database records is sorting the records by one of your fields. For that, Avo makes it easy using the sortable option.

Add it to any field to make that column sortable in the Index view.

ruby

field :name, as: :text, sortable: true

Related:

Add an index on the created_at column

Custom sortable block

When using computed fields or belongs_to associations, you can't set sortable: true to that field because Avo doesn't know what to sort by. However, you can use a block to specify how the records should be sorted in those scenarios.

ruby

class Avo::Resources::User < Avo::BaseResource
  field :is_writer,
    as: :text,
    sortable: -> {
      # Order by something else completely, just to make a test case that clearly and reliably does what we want.
      query.order(id: direction)
    },
    hide_on: :edit do
      record.posts.to_a.size > 0 ? "yes" : "no"
    end
end

The block receives the query and the direction in which the sorting should be made and must return back a query.

In the example of a Post that has_many Comments, you might want to order the posts by which one received a comment the latest.

You can do that using this query.

app/avo/resources/post.rbapp/models/post.rb

ruby

class Avo::Resources::Post < Avo::BaseResource
  field :last_commented_at,
    as: :date,
    sortable: -> {
      query.includes(:comments).order("comments.created_at #{direction}")
    }
end

ruby

class Post < ApplicationRecord
  has_many :comments

  def last_commented_at
    comments.last&.created_at
  end
end

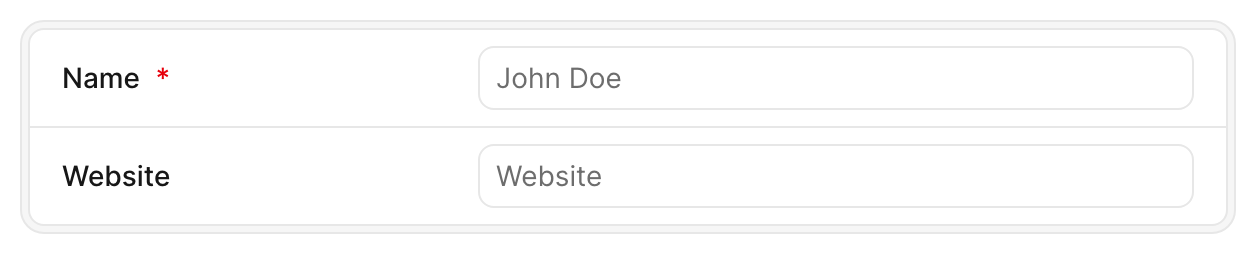

Placeholder

Some fields support the placeholder option, which will be passed to the inputs on Edit and New views when they are empty.

ruby

field :name, as: :text, placeholder: 'John Doe'

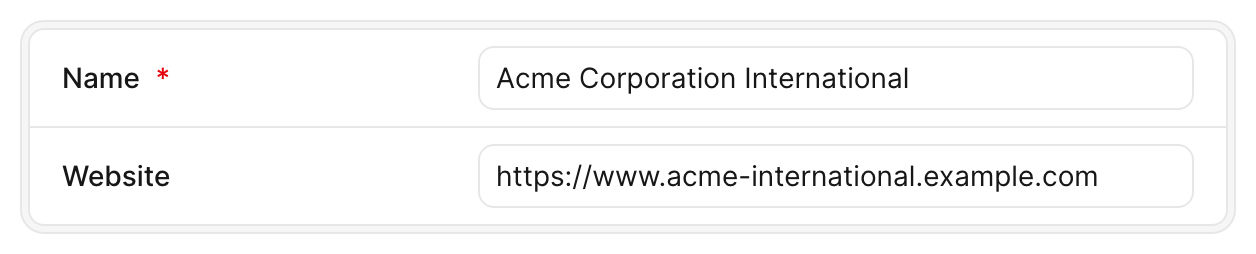

Required

To indicate that a field is mandatory, you can utilize the required option, which adds an asterisk to the field as a visual cue.

Avo automatically examines each field to determine if the associated attribute requires a mandatory presence. If it does, Avo appends the asterisk to signify its mandatory status. It's important to note that this option is purely cosmetic and does not incorporate any validation logic into your model. You will need to manually include the validation logic yourself, such as (validates :name, presence: true).

ruby

field :name, as: :text, required: true

Watch the demo video

You may use a block as well. It will be executed in the Avo::ExecutionContext and you will have access to the view, record, params, context, view_context, and current_user.

ruby

field :name, as: :text, required: -> { view == :new } # make the field required only on the new view and not on edit

Disabled

When you need to prevent the user from editing a field, the disabled option will render it as disabled on New and Edit views and the value will not be passed to that record in the database. This prevents a bad actor to go into the DOM, enable that field, update it, and then submit it, updating the record.

ruby

field :name, as: :text, disabled: true

Disabled as a block

Since v2.14

You may use a block as well. It will be executed in the Avo::ExecutionContext and you will have access to the view, record, params, context, view_context, and current_user.

ruby

field :id, as: :number, disabled: -> { view == :edit } # make the field disabled only on the new edit view

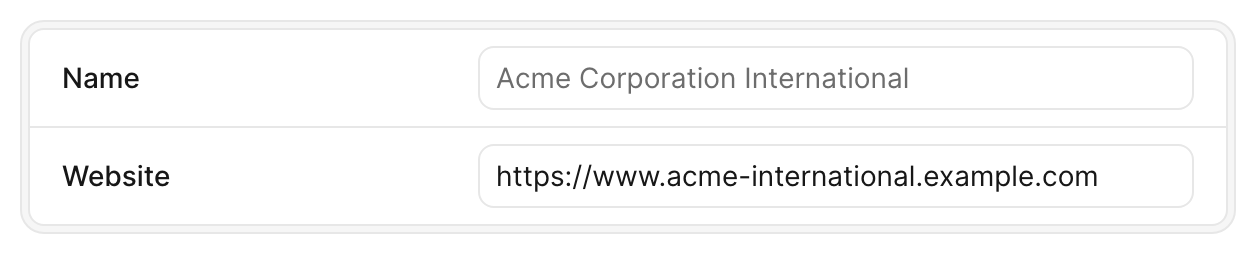

Readonly

When you need to prevent the user from editing a field, the readonly option will render it as disabled on New and Edit views. This does not, however, prevent the user from enabling the field in the DOM and send an arbitrary value to the database.

ruby

field :name, as: :text, readonly: true

Default Value

When you need to give a default value to one of your fields on the New view, you may use the default block, which takes either a fixed value or a block.

ruby

# using a value
field :name, as: :text, default: 'John'

# using a callback function
field :level, as: :select, options: { 'Beginner': :beginner, 'Advanced': :advanced }, default: -> { Time.now.hour < 12 ? 'advanced' : 'beginner' }

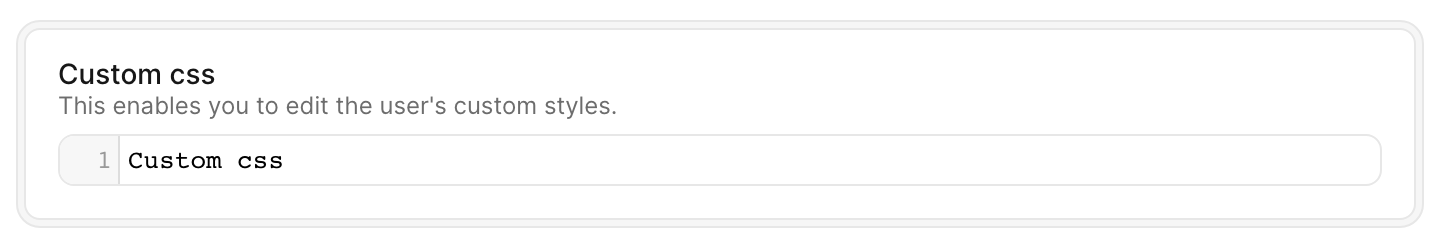

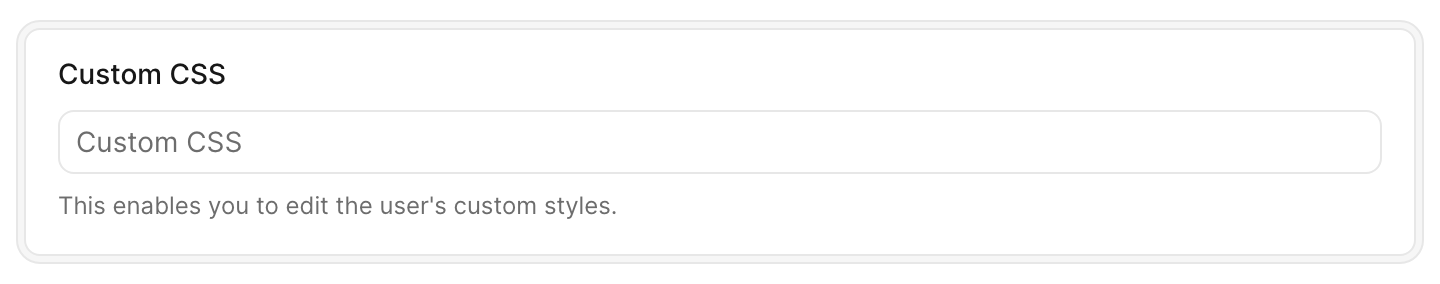

Help text

Sometimes you will need some extra text to explain better what the field is used for. You can achieve that by using the help method. The value can be either text or HTML.

ruby

# using the text value
field :custom_css, as: :code, theme: 'dracula', language: 'css', help: "This enables you to edit the user's custom styles."

# using HTML value
field :password, as: :password, help: 'You may verify the password strength <a href="http://www.passwordmeter.com/">here</a>.'

Nullable

When a user uses the Save button, Avo stores the value for each field in the database. However, there are cases where you may prefer to explicitly instruct Avo to store a NULL value in the database row when the field is empty. You do that by using the nullable option, which converts nil and empty values to NULL.

You may also define which values should be interpreted as NULL using the null_values method.

ruby

# using default options
field :updated_status, as: :status, failed_when: [:closed, :rejected, :failed], loading_when: [:loading, :running, :waiting], nullable: true

# using custom null values
field :body, as: :textarea, nullable: true, null_values: ['0', '', 'null', 'nil', nil]

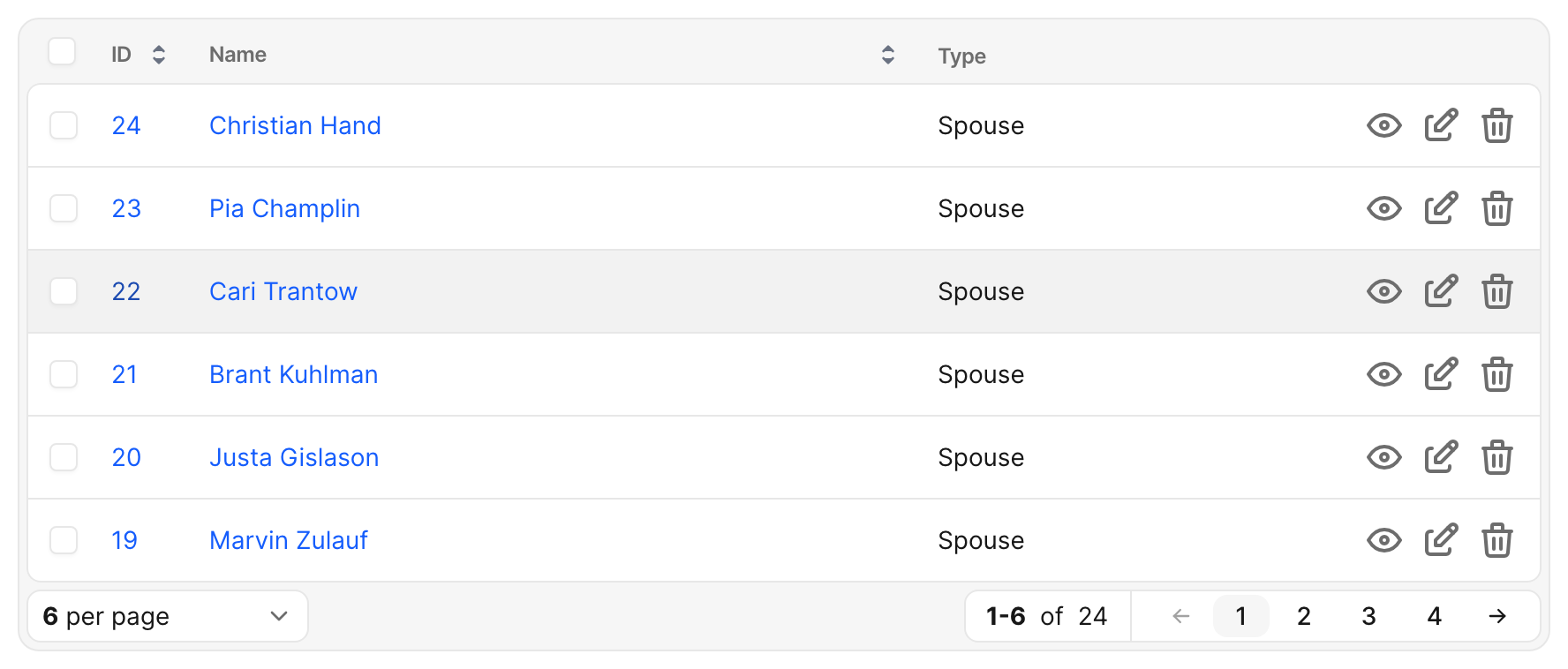

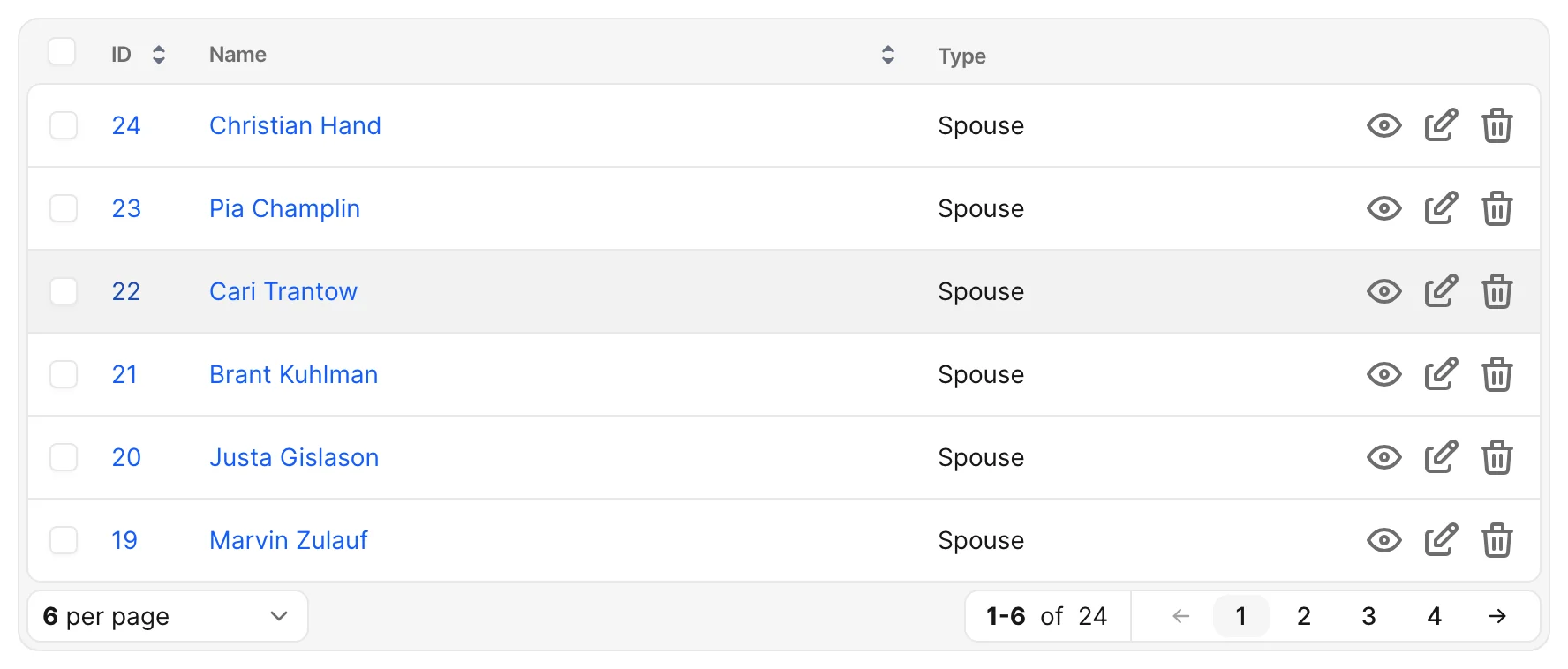

Link to record

Sometimes, on the Index view, you may want a field in the table to be a link to that resource so that you don't have to scroll to the right to click on the Show icon. You can use link_to_record to change a table cell to be a link to that record.

ruby

# for id field
field :id, as: :id, link_to_record: true

# for text field
field :name, as: :text, link_to_record: true

# for gravatar field
field :email, as: :gravatar, link_to_record: true

You can add this property on id, text, and gravatar fields.

Optionally you can enable the global config id_links_to_resource. More on that on the id links to resource docs page.

Related:

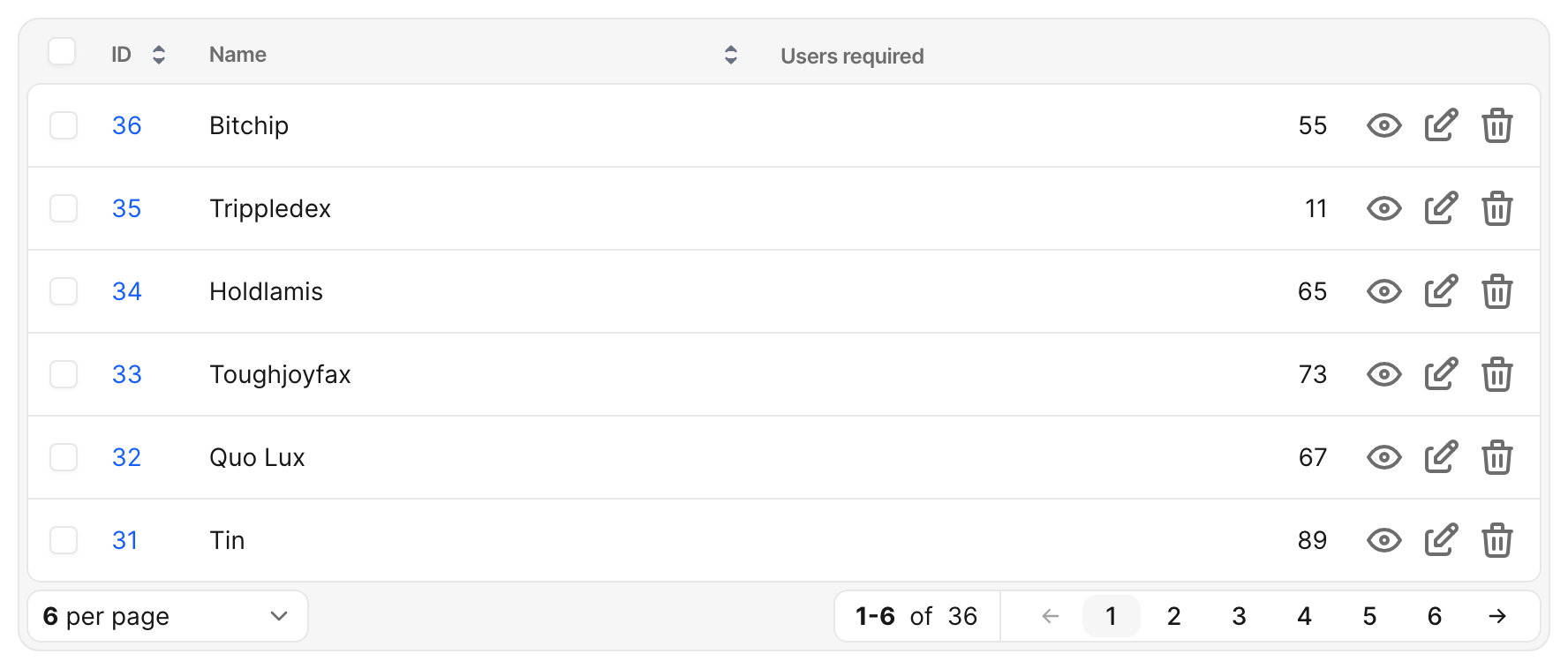

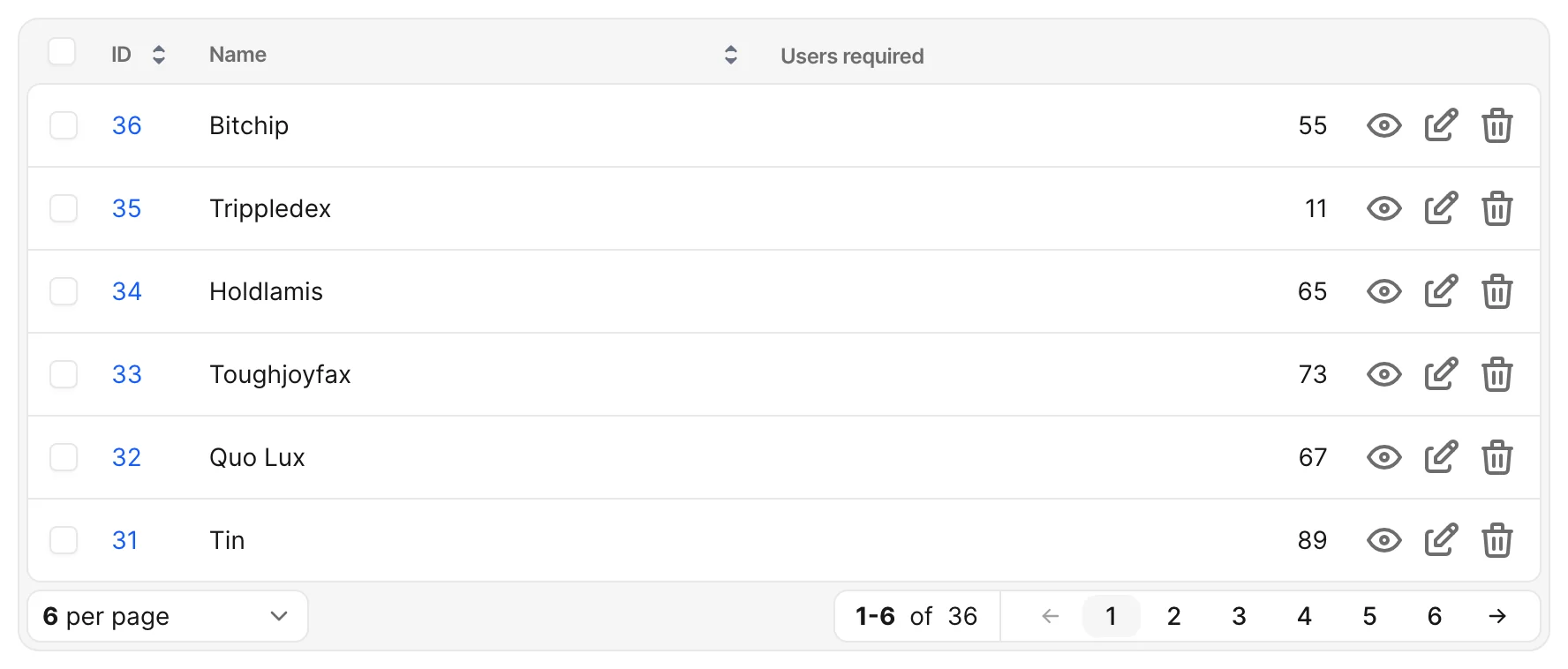

Align text on Index view

It's customary on tables to align numbers to the right. You can do that using the html option.

ruby

class Avo::Resources::Project < Avo::BaseResource
  field :users_required, as: :number, html: {index: {wrapper: {classes: "text-right"}}}
end

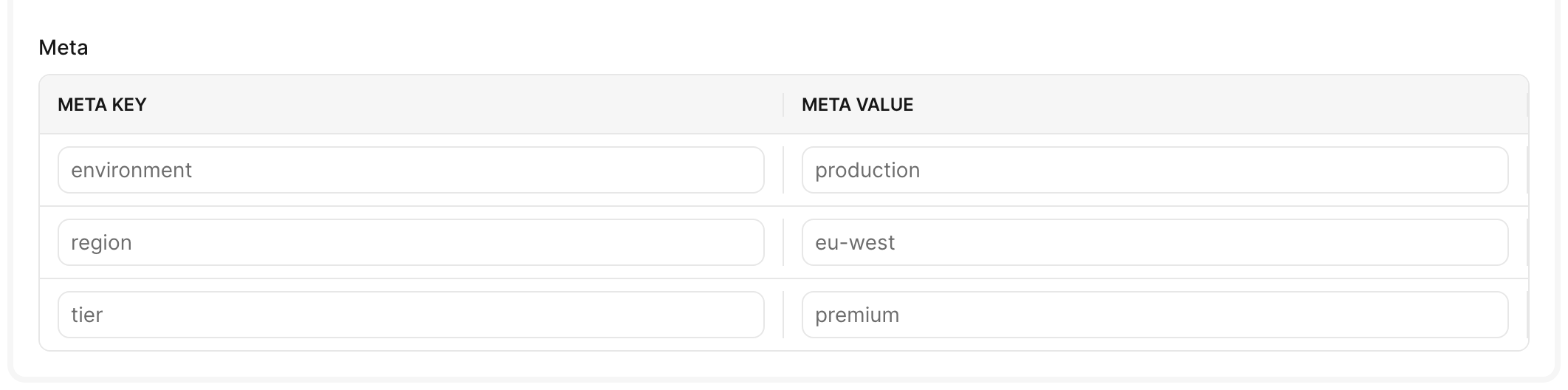

Stacked layout

For some fields, it might make more sense to use all of the horizontal area to display it. You can do that by changing the layout of the field wrapper using the stacked option.

ruby

field :meta, as: :key_value, stacked: true

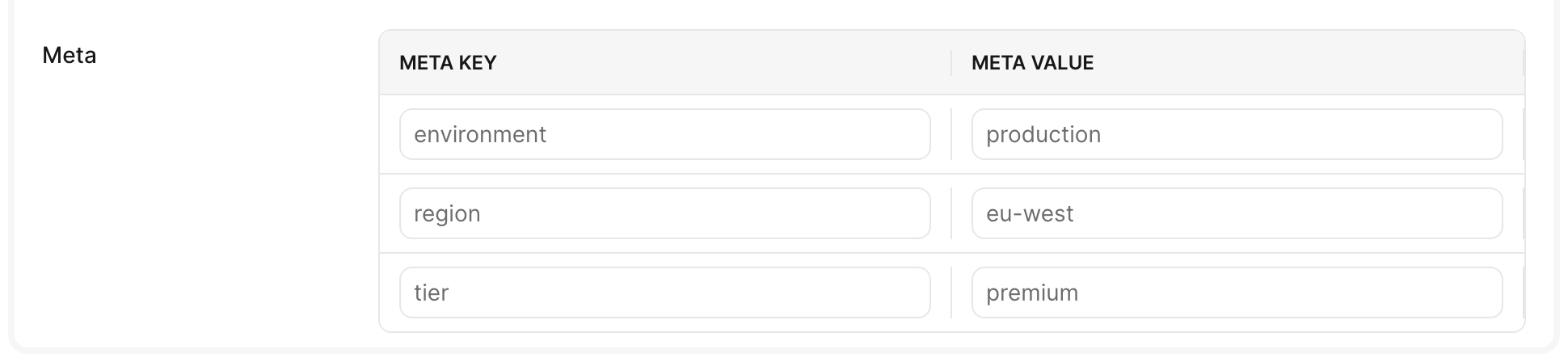

`inline` layout (default)

`stacked` layout

Global `stacked` layout

You may also set all the fields to follow the stacked layout by changing the field_wrapper_layout initializer option from :inline (default) to :stacked.

ruby

Avo.configure do |config|
  config.field_wrapper_layout = :stacked
end

Now, all fields will have the stacked layout throughout your app.

Field options

`-> components`

The field's components option allows you to customize the view components used for rendering the field in all, index, show and edit views. This provides you with a high degree of flexibility.

Ejecting the field components

To start customizing the field components, you can eject one or multiple field components using the avo:eject command. Ejecting a field component generates the necessary files for customization. Here's how you can use the avo:eject command:

Ejecting All Components for a Field

$ rails g avo:eject --field-components FIELD_TYPE --scope admin

Replace FIELD_TYPE with the desired field type. For instance, to eject components for a Text field, use:

$ rails g avo:eject --field-components text --scope admin

This command will generate the files for all the index, edit and show components of the Text field, for each field type the amount of components may vary.

For more advanced usage check the eject documentation.

Scope

If you don't pass a --scope when ejecting a field view component, the ejected component will override the default components all over the project.

Check eject documentation for more details.

Customizing field components using `components` option

Here's some examples of how to use the components option in a field definition:

HashBlock

ruby

field :description,
  as: :text,
  components: {
    index_component: Avo::Fields::Admin::TextField::IndexComponent,
    show_component: Avo::Fields::Admin::TextField::ShowComponent,
    edit_component: "Avo::Fields::Admin::TextField::EditComponent"
  }

ruby

field :description,
  as: :text,
  components: -> do
    {
      show_component: Avo::Fields::Admin::TextField::ShowComponent,
      edit_component: "Avo::Fields::Admin::TextField::EditComponent"
    }
  end

The components block it's executed using Avo::ExecutionContent and gives access to a bunch of variables as: resource, record, view, params and more.

<view>_component is the key used to render the field's <view>'s component, replace <view> with one of the views in order to customize a component per each view.

Initializer

It's important to keep the initializer on your custom components as the original field view component initializer.

`-> html`

Attach HTML attributes

Using the html option you can attach style, classes, and data attributes. The style attribute adds the style tag to your element, classes adds the class tag, and the data attribute the data tag to the element you choose.

You may find more detailed information about the HTML attributes here.

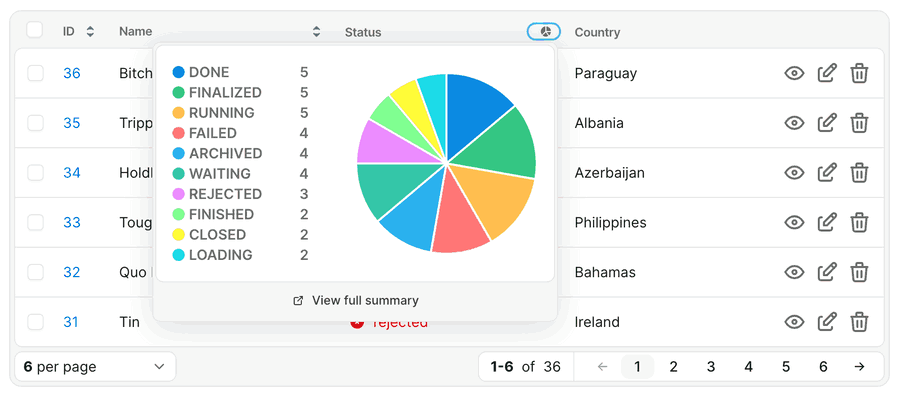

`-> summarizable`

The summarizable option allows you to generate a visual summary of a column's data distribution. This feature provides a quick and intuitive overview of your dataset by displaying a chart within the table header.

You can enable summarizable for a column like this:

ruby

def fields
  field :status, as: :select, summarizable: true
  field :status, as: :badge, summarizable: true
end

How It Works

When summarizable is enabled, a chart icon will appear in the table header for that column. Clicking on the icon will display a summary chart based on the data in that column. The chart provides a visual representation of data distribution, making it easier to analyze trends.

`-> for_attribute`

Allows to specify the target attribute on the model for each field. By default the target attribute is the field's id.

Usage example:

ruby

field :status, as: :select, options: [:one, :two, :three], only_on: :forms

field :secondary_field_for_status,
  as: :badge,
  for_attribute: :status,
  options: {info: :one, :success: :two, warning: :three},
  except_on: :forms,
  help: "Secondary field for status using the for_attribute option"

`-> meta`

This handy option enables you to send arbitrary information to the field. It's especially useful when you're building your own custom fields or you are using custom components for the built-in fields.

Usage example:

ruby

# meta as a hash
field :status,
  as: :custom_status,
  meta: {foo: :bar}

# meta as a block
field :status,
  as: :badge,
  meta: -> do
    record.statuses.map(&:id)
  end

Within your field template you can now access the @field.meta attribute.

erb

<%= field_wrapper **field_wrapper_args do %>
  <% if @field.meta[:foo] %>
    <%= @resource.record.foo_value %>
  <% else %>
    <%= @field.value %>
  <% end %>
<% end %>

`-> copyable`

Since v3.15.6

The copyable option enables users to copy the field's value to their clipboard. When set to true, a clipboard icon appears when hovering over the field value, allowing easy copying. This feature can be particularly useful for fields such as unique identifiers, URLs, or other text-based content that users may frequently need to copy.

ruby

field :name, as: :text, copyable: true

The copyable option is available for text-based fields such as :text, :textarea, and others that render text values.

`-> react_on`

Since v4.0

The react_on option enables dynamic reactivity for a field when changes occur elsewhere in the form. When a specified field changes, the current field is re-evaluated, and the @record object is refreshed with the latest form values.

TIP

To retrieve the original value of a field before it was changed, use the *_was methods.

ruby

# Current from form
@record.country
"USA"

# Initial value
@record.country_was
"Spain"

Possible values

You can configure the field to react to:

A single field: :field_one
Multiple fields: [:field_one, :field_two]
All fields in the form: :all

Example

In the example below, the city field is set to react whenever the country select field is changed. This ensures that the available city options are always relevant to the selected country.

ruby

# app/avo/resources/course.rb
class Avo::Resources::Course < Avo::BaseResource
  def fields
    field :country,
      as: :select,
      options: Course.countries,
      include_blank: "No country"

    field :city,
      as: :select,
      react_on: :country,
      options: -> { Course.cities.dig(@record.country&.to_sym) || [""] }
  end
end

Field options ​

Common field option example ​

Custom field option example ​

Change field name ​

Showing / Hiding fields on different views ​

Field Visibility ​

Computed Fields ​

Fields Formatter ​

Common formatting options ​

-> format_using

-> format_{view}_using

Formatting with Rails helpers ​

Parse value before update ​

Sortable fields ​

Custom sortable block ​

Placeholder ​

Required ​

Disabled ​

Disabled as a block ​

Readonly ​

Default Value ​

Help text ​

Nullable ​

Link to record ​

Align text on Index view ​

Stacked layout ​

inline layout (default) ​

stacked layout ​

Global stacked layout ​

Field options ​

-> components

Ejecting the field components ​

Ejecting All Components for a Field ​

Customizing field components using components option ​

-> html

Attach HTML attributes ​

-> summarizable

How It Works ​

-> for_attribute

-> meta

-> copyable

-> react_on

Possible values ​

Example ​

Field options

Common field option example

Custom field option example

Change field name

Showing / Hiding fields on different views

Field Visibility

Computed Fields

Fields Formatter

Common formatting options

`-> format_using`

`-> format_{view}_using`

Formatting with Rails helpers

Parse value before update

Sortable fields

Custom sortable block

Placeholder

Required

Disabled

Disabled as a block

Readonly

Default Value

Help text

Nullable

Link to record

Align text on Index view

Stacked layout

`inline` layout (default)

`stacked` layout

Global `stacked` layout

Field options

`-> components`

Ejecting the field components

Ejecting All Components for a Field

Customizing field components using `components` option

`-> html`

Attach HTML attributes

`-> summarizable`

How It Works

`-> for_attribute`

`-> meta`

`-> copyable`

`-> react_on`

Possible values

Example
