Custom fields

Avo ships with 20+ polished, ready-to-use fields out of the box.

When you need a field that isn't provided by default, Avo makes it easy to build your own.

Generate a new field

Every new field comes with three view components, Edit (which is also used in the New view), and Show and Index. There's also a Field configuration file.

bin/rails generate avo:field progress_bar generates the files for you.

INFO

Please restart your rails server after adding a new custom field.

▶ bin/rails generate avo:field progress_bar
      create  app/components/avo/fields/progress_bar_field
      create  app/components/avo/fields/progress_bar_field/edit_component.html.erb
      create  app/components/avo/fields/progress_bar_field/edit_component.rb
      create  app/components/avo/fields/progress_bar_field/index_component.html.erb
      create  app/components/avo/fields/progress_bar_field/index_component.rb
      create  app/components/avo/fields/progress_bar_field/show_component.html.erb
      create  app/components/avo/fields/progress_bar_field/show_component.rb
      create  app/avo/fields/progress_bar_field.rb

The ProgressBarField file is what registers the field in your admin.

class Avo::Fields::ProgressBarField < Avo::Fields::BaseField
  def initialize(name, **args, &block)
    super(name, **args, &block)
  end
end

Now you can use your field like so:

# app/avo/resources/project.rb
class Avo::Resources::Project < Avo::BaseResource
  self.title = :name

  def fields
    field :id, as: :id, link_to_record: true
    field :progress, as: :progress_bar
  end
end

The generated view components are basic text fields for now.

<%# app/components/avo/fields/progress_bar_field/edit_component.html.erb %>
<%= field_wrapper **field_wrapper_args do %>
  <%= @form.text_field @field.id,
    class: classes("w-full"),
    placeholder: @field.placeholder,
    disabled: disabled?,
    autofocus: @autofocus %>
<% end %>

<%# app/components/avo/fields/progress_bar_field/index_component.html.erb %>
<%= index_field_wrapper **field_wrapper_args do %>
  <%= @field.value %>
<% end %>

<%# app/components/avo/fields/progress_bar_field/show_component.html.erb %>
<%= field_wrapper **field_wrapper_args do %>
  <%= @field.value %>
<% end %>

The field_wrapper_args, classes, and disabled? helpers come from the base components your field inherits from (Avo::Fields::EditComponent, ShowComponent, and IndexComponent), so they're available in every generated component.

You can customize them and add as much or as little content as needed. More on customization below.

Start from an existing field

There may be times when you want to duplicate an existing field and start from there.

To achieve this behavior, use the --field_template argument and pass the original field as a value.

Now, all components will have the exact same code (except the name) as the original field.

$ bin/rails generate avo:field super_text --field_template text
      create  app/components/avo/fields/super_text_field
      create  app/components/avo/fields/super_text_field/edit_component.html.erb
      create  app/components/avo/fields/super_text_field/edit_component.rb
      create  app/components/avo/fields/super_text_field/index_component.html.erb
      create  app/components/avo/fields/super_text_field/index_component.rb
      create  app/components/avo/fields/super_text_field/show_component.html.erb
      create  app/components/avo/fields/super_text_field/show_component.rb
      create  app/avo/fields/super_text_field.rb

We can verify that all components have the text field code. From here there are endless possibilities to extend the original field features.

# app/avo/fields/super_text_field.rb
module Avo
  module Fields
    class SuperTextField < BaseField
      attr_reader :link_to_record
      attr_reader :as_html
      attr_reader :protocol

      def initialize(id, **args, &block)
        super(id, **args, &block)

        add_boolean_prop args, :link_to_record
        add_boolean_prop args, :as_html
        add_string_prop args, :protocol
      end
    end
  end
end

# lib/avo/fields/text_field.rb
module Avo
  module Fields
    class TextField < BaseField
      attr_reader :link_to_record
      attr_reader :as_html
      attr_reader :protocol

      def initialize(id, **args, &block)
        super(id, **args, &block)

        add_boolean_prop args, :link_to_record
        add_boolean_prop args, :as_html
        add_string_prop args, :protocol
      end
    end
  end
end

Field options

This file is where you may add field-specific options.

# app/avo/fields/progress_bar_field.rb
class Avo::Fields::ProgressBarField < Avo::Fields::BaseField
 attr_reader :max
 attr_reader :step
 attr_reader :display_value
 attr_reader :value_suffix

 def initialize(name, **args, &block)
  super(name, **args, &block)

  @max = 100
  @step = 1
  @display_value = false
  @value_suffix = nil
 end
end

The field-specific options can come from the field declaration as well.

# app/avo/fields/progress_bar_field.rb
class Avo::Fields::ProgressBarField < Avo::Fields::BaseField
  attr_reader :max
  attr_reader :step
  attr_reader :display_value
  attr_reader :value_suffix

  def initialize(name, **args, &block)
    super(name, **args, &block)

    @max = args[:max] || 100
    @step = args[:step] || 1
    @display_value = args[:display_value] || false
    @value_suffix = args[:value_suffix] || nil
  end
end

# app/avo/resources/project.rb
class Avo::Resources::Project < Avo::BaseResource
  self.title = :name

  def fields
    field :id, as: :id, link_to_record: true
    field :progress, as: :progress_bar, step: 10, display_value: true, value_suffix: "%"
  end
end

Field Visibility

If you need to hide the field in some view, you can use the visibility helpers.

# app/avo/fields/progress_bar_field.rb
class Avo::Fields::ProgressBarField < Avo::Fields::BaseField
  attr_reader :max
  attr_reader :step
  attr_reader :display_value
  attr_reader :value_suffix

  def initialize(name, **args, &block)
    super(name, **args, &block)

    @max = args[:max] || 100
    @step = args[:step] || 1
    @display_value = args[:display_value] || false
    @value_suffix = args[:value_suffix] || nil

    hide_on :forms
  end
end

What's available in your components

Each of the three generated components inherits from an Avo base component — Avo::Fields::EditComponent, Avo::Fields::ShowComponent, and Avo::Fields::IndexComponent (see the generated *_component.rb files). Those base classes expose the objects and helpers you use when rendering.

The most useful ones, available in the .html.erb templates:

Variable / helper	Available in	What it is
@field	all three	The field instance — your Avo::Fields::ProgressBarField. Read its value with @field.value and its id, placeholder, name, type, plus every attr_reader you add (@field.max, @field.step, …).
@resource	all three	The resource the field belongs to.
@index	all three	The field's position on the page.
@view	all three	An Avo::ViewInquirer — @view.index?, @view.show?, @view.edit?, @view.new?.
field_wrapper_args	all three	The hash to splat into the field wrapper: field_wrapper **field_wrapper_args. Passes @field, @resource, @view, and layout flags through for you.
@form	Edit	The Rails form builder. Build inputs with @form.text_field @field.id, @form.range_field @field.id, etc.
classes("extra")	Edit	Input CSS classes with error state, size, and any HTML overrides already applied. Pass extra classes as a string.
disabled?	Edit, Show	true when the field is readonly or disabled. Prefer it over @field.readonly — it covers both cases.
@stacked, @full_width, @density	vary by view	Layout flags forwarded from the resource; usually you just pass them through via field_wrapper_args.

How the field wrapper ties it together

The first thing every generated component does is wrap your content in the field wrapper — field_wrapper on Show/Edit, index_field_wrapper on Index. This is the piece that makes a custom field look native: the wrapper renders the label, the required asterisk, the help text, the validation error, and the blank-— placeholder, and it applies the stacked / full_width / density layout around whatever you put inside the block. You render the value; the wrapper renders everything around it.

That's why you splat field_wrapper_args into it instead of building the label and spacing yourself — the base component already collected everything the wrapper needs. You can still pass extra options alongside it (field_wrapper **field_wrapper_args, full_width: true); the full list lives in the field wrappers reference.

WARNING

The wrapper renders a dash (—) instead of your block whenever @field.value is blank — it checks the value, not what your block actually renders. If your custom field draws something meaningful even when the value is nil, pass dash_if_blank: false or your content will never show.

Customize the views

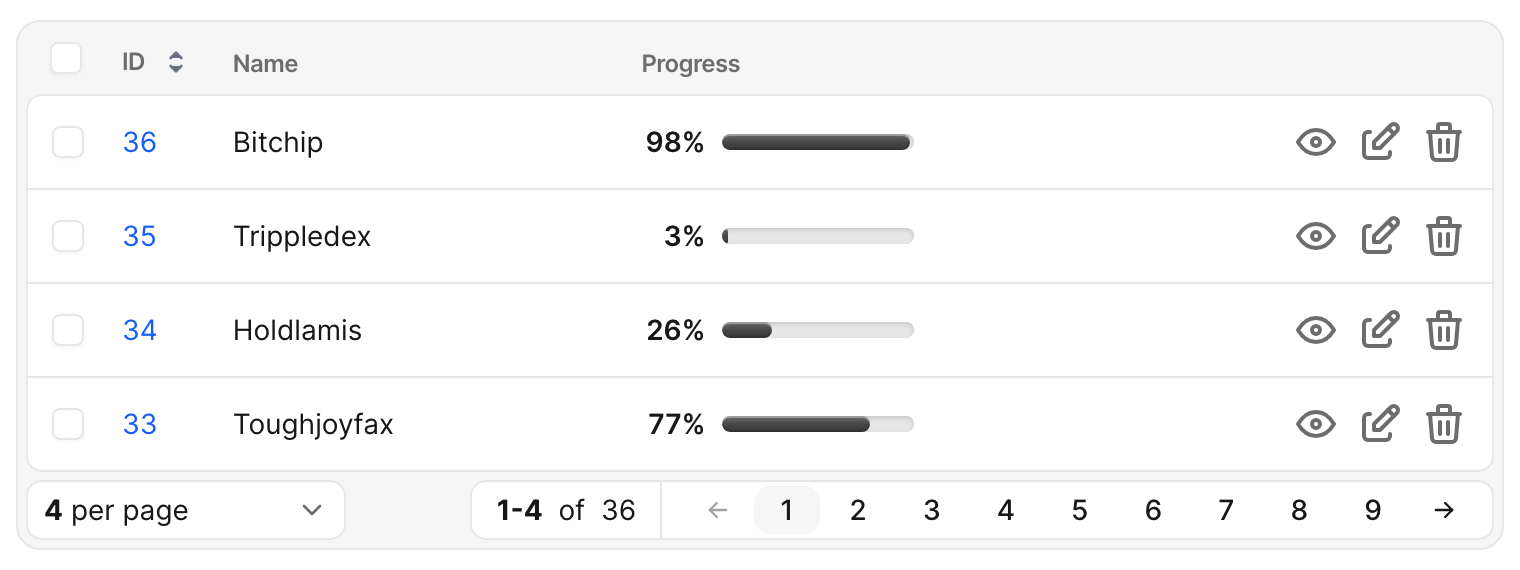

Now let's do something about those views. Let's add a progress bar to the Index and Show views.

<%# app/components/avo/fields/progress_bar_field/show_component.html.erb %>
<%= field_wrapper **field_wrapper_args do %>
  <!-- If display_value is set to true, show the value above the progress bar -->
  <% if @field.display_value %>
    <div class="text-center text-sm font-semibold w-full leading-none mb-1">
      <!-- Add the suffix if value_suffix is set -->
      <%= @field.value %><%= @field.value_suffix if @field.value_suffix.present? %>
    </div>
  <% end %>

  <!-- Show the progress input with the settings we passed to the field. -->
  <progress max="<%= @field.max %>" value="<%= @field.value %>" class="block w-full"></progress>
<% end %>

<%# app/components/avo/fields/progress_bar_field/index_component.html.erb %>
<%= index_field_wrapper **field_wrapper_args do %>
  <!-- If display_value is set to true, show the value above the progress bar -->
  <% if @field.display_value %>
    <div class="text-center text-sm font-semibold w-full leading-none mb-1">
      <!-- Add the suffix if value_suffix is set -->
      <%= @field.value %><%= @field.value_suffix if @field.value_suffix.present? %>
    </div>
  <% end %>

  <!-- Show the progress input with the settings we passed to the field. -->
  <progress max="<%= @field.max %>" value="<%= @field.value %>" class="block w-24"></progress>
<% end %>

For the Edit view, we're going to do something different. We'll implement a range input. Pass autofocus: @autofocus to it so the field honors the autofocus option.

<%# app/components/avo/fields/progress_bar_field/edit_component.html.erb %>
<%= field_wrapper **field_wrapper_args do %>
  <!-- Show the progress input with the settings we passed to the field. -->
  <% if @field.display_value %>
    <div class="text-center text-sm font-semibold w-full leading-none mb-1">
      <!-- Add the suffix if value_suffix is set -->
      <span class="js-progress-bar-value-<%= @field.id %>"><%= @field.value %></span><%= @field.value_suffix if @field.value_suffix.present? %>
    </div>
  <% end %>
  <!-- Add the range input with the settings we passed to the field -->
  <%= @form.range_field @field.id,
    class: 'w-full',
    placeholder: @field.placeholder,
    disabled: disabled?,
    autofocus: @autofocus,
    min: 0,
    # add the field-specific options
    max: @field.max,
    step: @field.step,
    %>
<% end %>

<script>
// Get the input and value elements
var input = document.getElementById('project_progress');
// Scope the selector to the current field. You might have more than one progress field on the page.
var log = document.querySelector('.js-progress-bar-value-<%= @field.id %>');

// Add an event listener for when the input is updated
input.addEventListener('input', updateValue);

// Update the value element with the value from the input
function updateValue(e) {
  log.textContent = e.target.value;
}
</script>

Field assets

Because there isn't just one standardized way of handling assets in Rails, we decided we won't provide asset loading support for custom fields for now. That doesn't mean that you can't use custom assets (javascript or CSS files), but you will have to load them in your own pipeline in dedicated Avo files.

In the example above, we added javascript on the page just to demonstrate the functionality. In reality, you might add that to a stimulus controller inside your own Avo dedicated pipeline.

Some styles were added in the asset pipeline directly.

progress {
  @apply h-2 bg-white border border-gray-400 rounded shadow-inner;
}
progress[value]::-webkit-progress-bar {
  @apply bg-white border border-gray-500 rounded shadow-inner;
}
progress[value]::-webkit-progress-value {
  @apply bg-green-600 rounded;
}
progress[value]::-moz-progress-bar {
  @apply bg-green-600 rounded appearance-none;
}

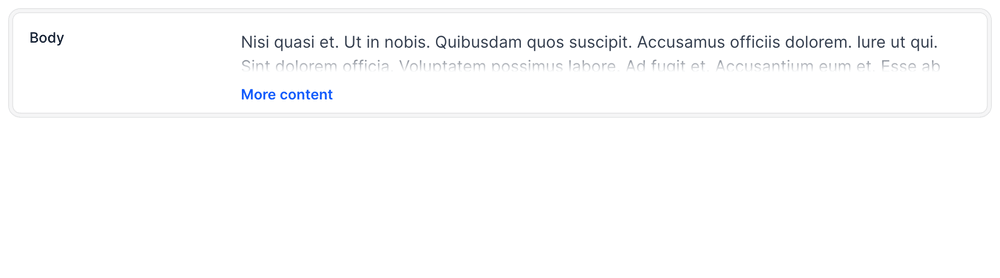

Collapse long content on Show

If your field renders something tall — rich text, a rendered document, a long code listing — hand collapsable: true to the field wrapper. Avo clips the value to a short, faded preview with a More content link that expands it (and a Less content link that collapses it back), the same wrapper every WYSIWYG and markdown field uses, so your field reads like the built-in ones.

Give users a way out of the collapsing by accepting the always_show option on your field, the way the built-in rich text fields do:

# app/avo/fields/color_picker_field.rb
class Avo::Fields::ColorPickerField < Avo::Fields::BaseField
  attr_reader :always_show

  def initialize(id, **args, &block)
    super(id, **args, &block)

    @always_show = args[:always_show] || false
  end
end

Then pass it through, inverted, from the field's Show component:

<%# app/components/avo/fields/color_picker_field/show_component.html.erb %>

<%= field_wrapper(**field_wrapper_args, collapsable: !@field.always_show) do %>
  <div style="background-color: <%= @field.value %>"
    class="h-6 px-1 rounded-md text-white text-sm flex items-center justify-center leading-none"
  >
    <%= @field.value %>
  </div>
<% end %>

The wrapper only reveals the toggle when the content is actually taller than the preview, so short values render in full with no link.

INFO

collapsable applies on the Show view only — the field wrapper ignores it on Index and Edit.

Make an editor field resizable

If your field renders an editor on forms, declare the CSS selector of its scrollable viewport. Avo turns that element into a vertically resizable one with a drag handle, and remembers the height per field in the browser's local storage:

# app/avo/fields/my_editor_field.rb
class Avo::Fields::MyEditorField < Avo::Fields::BaseField
  resizable_editor target: ".my-editor__content"
end

The selector is resolved inside the field wrapper after the editor boots, so editors that render themselves client-side work too.

Use pre-built Stimulus controllers

Avo ships with a few Stimulus controllers that help you build more dynamic fields.

Hidden input controller

This controller hides content behind a trigger that reveals it — a one-way reveal, unlike the collapsable wrapper above, and it makes no assumptions about how tall the content is. Avo uses it on the getting started screen.

Wrap the field in the controller tag, add the trigger, and give the value's container the content target plus the hidden class when always_show is false:

<%# app/components/avo/fields/color_picker_field/show_component.html.erb %>

<%= field_wrapper **field_wrapper_args do %>
  <div data-controller="hidden-input">
    <% unless @field.always_show %>
      <%= link_to t('avo.show_content'), 'javascript:void(0);', class: 'font-bold inline-block', data: { action: 'click->hidden-input#showContent' } %>
    <% end %>
    <div <% unless @field.always_show %> class="hidden" <% end %> data-hidden-input-target="content">
      <div style="background-color: <%= @field.value %>"
        class="h-6 px-1 rounded-md text-white text-sm flex items-center justify-center leading-none"
      >
        <%= @field.value %>
      </div>
    </div>
  </div>
<% end %>

Non existing model field

To ensure proper rendering of a custom field that lacks getters and setters at the model level, you must implement these methods within the model.

  def custom_field
  end

  def custom_field=(value)
  end

Field methods

We won't be able to list all the methods available for a field here, but we've added a few methods to help you build better fields.

-> table_header_class

This adds a class to the th element of the table header. We added it when we needed to force a certain column to be a certain size, but you can use it for any purpose.

It defaults to nil

def table_header_class
  "w-32"
end
