Fields

Fields are the backbone of a Resource. Through fields you tell Avo what to fetch from the database and how to display it on the Index, Show, and Edit views.

Fields can also be used in Actions to gather user input before running the action.

Avo ships with various simple fields like text, textarea, number, password, boolean, select, and more complex ones like markdown, key_value, trix, tags, and code.

Declaring fields

You add fields to a resource through the fields method using the field DATABASE_COLUMN, as: FIELD_TYPE, **FIELD_OPTIONS notation.

def fields
  field :name, as: :text
end

The first argument (:name here) is the column in the database where Avo looks for information, or a property on your model.

On the Index and Show views, we'll get a new text column of that record's database value. Finally, on the Edit and New views, we will get a text input field that will display & update the name field on that model.

Specific methods for each view

The fields method is used whenever no view-specific method is defined. To specify fields for each view or a group of views, you can use the following methods:

index view -> index_fields
show view -> show_fields
edit / update views -> edit_fields
new / create views -> new_fields

You can also register fields for a specific group of views as follows:

index / show views -> display_fields
edit / update / new / create views -> form_fields

When specific view fields are defined, they take precedence over view group fields. If neither specific view fields nor view group fields are defined, the fields will be retrieved from the fields method.

class Avo::Resources::City < Avo::BaseResource
  # Used on the `index` and `show` views
  def display_fields
    field :id, as: :id
    field :name, as: :text
    field :population, as: :number
    field :created_at, as: :date_time
  end

  # Used on the `new`, `create`, `edit`, and `update` views
  def form_fields
    field :name, as: :text
    field :population, as: :number
  end
end

INFO

On the preview view, Avo gathers fields from the fields, index_fields, show_fields, and display_fields methods combined.

Some fields must be declared even when hidden

When a form submits a value for a field, that field must be declared on the form views so Avo knows its type and can parse the submitted value. This comes up with resource tools that render inputs for fields themselves: declare those fields with hide_on: :forms instead of omitting them.

For instance, if a tool renders an input for features, a key_value field, you must keep field :features, as: :key_value, hide_on: :forms in your form fields. Omit it and Avo will be unable to update that database column.

Field conventions

When we declare a field, we pinpoint the specific database column for that field. Usually, that's a snake case value.

Each field has a label. Avo will convert the snake case name to a humanized version. In the following example, the is_available field will render the label as Is available.

field :is_available, as: :boolean

INFO

If having the fields stacked one on top of another is not the right layout, try the sidebar.

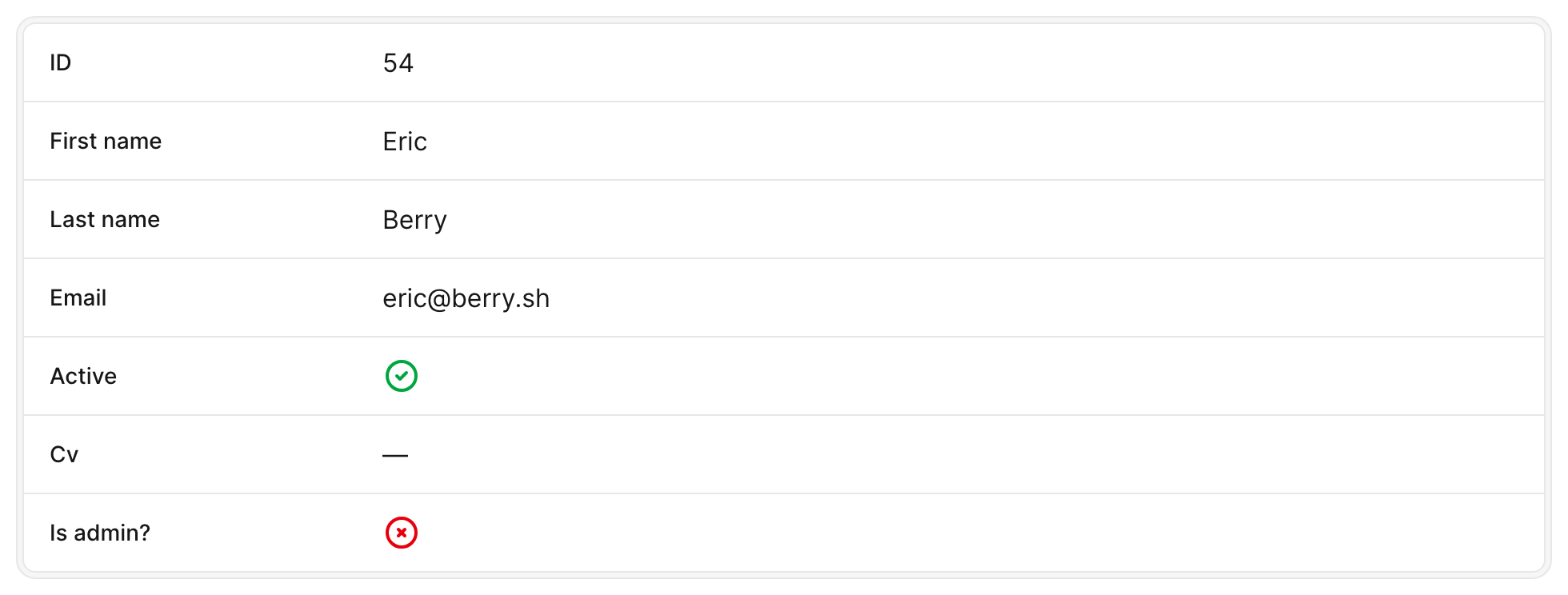

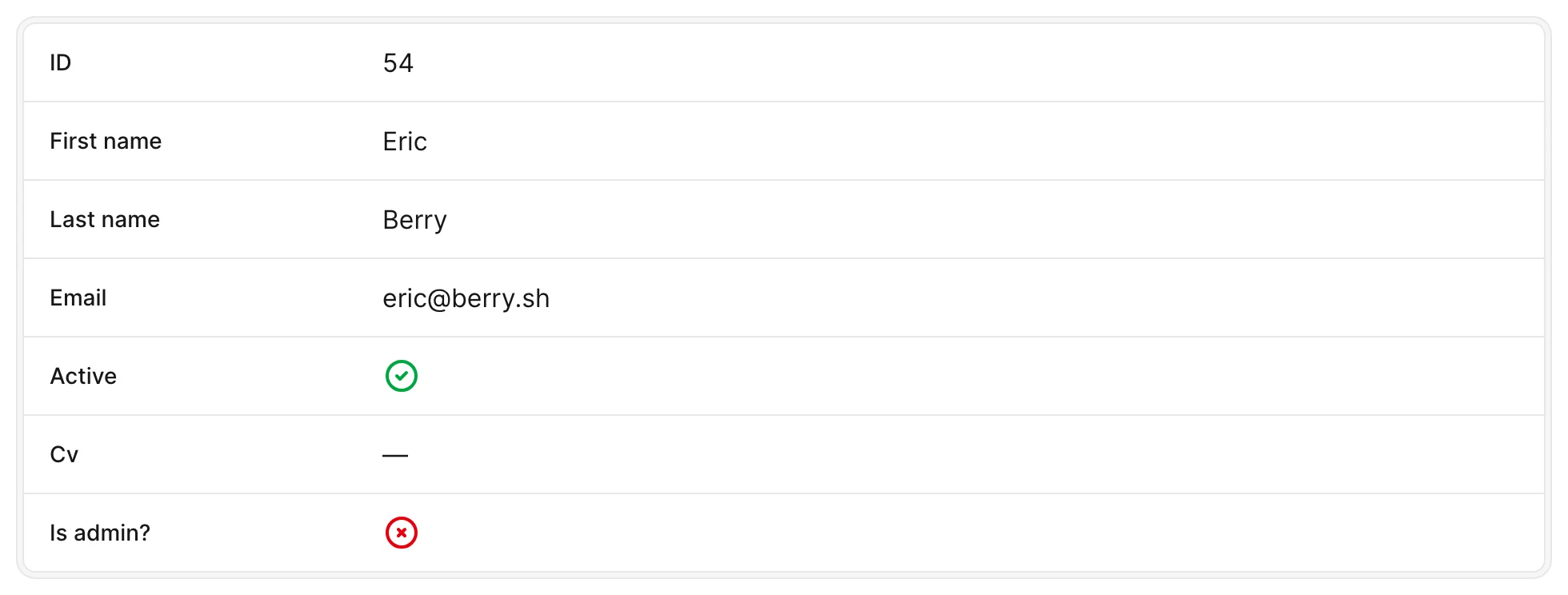

A more complex example

class Avo::Resources::User < Avo::BaseResource
  def fields
    field :id, as: :id
    field :first_name, as: :text
    field :last_name, as: :text
    field :email, as: :text
    field :active, as: :boolean
    field :cv, as: :file
    field :is_admin?, as: :boolean
  end
end

The fields method is already hydrated with the current_user, params, request, view_context, and context variables so you can use them to conditionally show/hide fields

class Avo::Resources::User < Avo::BaseResource
  def fields
    field :id, as: :id
    field :first_name, as: :text
    field :last_name, as: :text
    field :email, as: :text
    field :is_admin?, as: :boolean
    field :active, as: :boolean

    if current_user.is_admin?
      field :cv, as: :file
    end
  end
end

Field types

Field	Description	Tags
Area	The Area field is used to display a geographical area on a map.	maps
Array	The Array field allows you to display and manage structured array data.	structured
Avatar	The Avatar field is a field that displays a user's avatar or initials.	assets
Badge	The badge field is used to display an easily recognizable status of a record.	display
Belongs to	Lets the user select an associated record from a belongs_to association.	associations
Boolean	Renders a checkbox on form views and a green check or red X icon on the Index and Show views.	boolean
Boolean group	The BooleanGroup is used to update a Hash with string keys and boolean values in the database.	booleanstructured
Checkbox list	The CheckboxList field renders a list of checkboxes for selecting multiple values from a finite set of options.	choice
Code	The Code field generates a code editor using codemirror package.	structured
Country	Country field generates a Select field on Edit view that includes all ISO 3166-1 countries.	choice
Date	The Date field may be used to display date values.	date & time
Date time	Displays date and time values, with configurable format, timezone, and picker options.	date & time
Easy MDE	Renders the EasyMDE Markdown editor, storing raw Markdown in the database.	rich text
External image	Displays an image from a URL stored in the database.	assets
File	The File field is the fastest way to implement file uploads in a Ruby on Rails app using Active Storage.	attachments
Files	The Files field is similar to File and enables you to upload multiple files at once using the same easy-to-use Active Storage implementation.	attachments
Gravatar	The Gravatar field turns an email field from the database into an avatar image if it's found in the Gravatar database.	assets
Has and belongs to many	Displays and manages the records of a has_and_belongs_to_many association.	associations
Has many	Displays a panel with the associated records below the resource's fields on the Show view.	associations
Has one	Displays the associated record's fields unfolded on the Show view.	associations
Heading	Displays a heading separator to delimit sections of fields on a resource.	layout
Hidden	Renders a hidden input on the New and Edit views.	utility
Id	The id field is used to show the record's id.	display
Key value	The KeyValue field makes it easy to edit flat key-value pairs stored in JSON format in the database.	structured
LocationOpen beta	The Location field is used to display a point on a map.	maps
MarkdownBeta	A GitHub-inspired Markdown editor based on the Marksmith editor.	rich text
MoneyBeta	The Money field is used to display a monetary value.	number
Number	Renders a number input element.	number
Password	Renders a password input element.	text
Preview	The Preview field adds a tiny icon to each row on the Index view that, when hovered, it will display a preview popup with more information regarding that record.	display
Progress bar	Renders a progress bar on the Index and Show views and a range slider on the Edit and New views.	number
Radio	The Radio field is used to render radio buttons.	choice
Record link	Displays a link to another record.	displayassociations
Rhino	Renders the Rhino WYSIWYG editor, based on TipTap, with ActionText and Media Library support.	rich textattachments
Select	Renders a select dropdown with configurable options.	choice
Stars	The stars field renders a star rating display on Index and Show views, and interactive clickable stars on Edit and New views.	number
Status	The Status field renders a colored indicator on index and show views — loading, failed, success, or neutral.	display
Tags	Displays and manages a list of tags on a record.	choice
Text	Renders a text input element.	text
Textarea	The textarea field renders a textarea element.	text
Time	The Time field is similar to the DateTime field.	date & time
Tip TapDeprecated	The TipTap field is deprecated in favor of the Rhino field.	rich text
Trix	Renders the Trix WYSIWYG editor, storing its HTML content in a string or text column.	rich textattachments
