Basic filters API

Per-option reference for basic filter classes. For task-oriented documentation and worked examples, see the Basic filters guide.

A basic filter is a class living in app/avo/filters/ that inherits from one of five base classes, which determine the input the user sees and the shape of the value passed to apply:

Base class	Input	Value shape in apply
Avo::Filters::BooleanFilter	Checkboxes	Hash of "option_id" => true/false
Avo::Filters::SelectFilter	Dropdown	String (the selected option id)
Avo::Filters::MultipleSelectFilter	Multi-select	Array of Strings
Avo::Filters::TextFilter	Text input	String
Avo::Filters::DateTimeFilter	flatpickr date/time picker	String (formatted date/time, or "<start> to <end>" in range mode)

INFO

Filter values are serialized through the URL, so apply always receives strings — hashes arrive with stringified keys, regardless of how options declared them.

Class options

-> self.name

The label displayed for the filter in the filters panel.

self.name = "User names filter"

• Type: String or Proc
• Default: "Filter"

When given a block, it's evaluated through Avo::ExecutionContext and also has access to the registration arguments:

self.name = -> { I18n.t("avo.filter.name") }

-> self.button_label

The label on the button that applies the filter.

self.button_label = "Filter by user names"

• Type: String or Proc
• Default: nil — renders "Filter by <name>"

When given a block, it's evaluated through Avo::ExecutionContext and also has access to the registration arguments.

-> self.visible

Controls whether the filter shows up in the filters panel.

self.visible = -> do
  current_user.admin?
end

• Type: Proc returning a boolean
• Default: nil — the filter is always visible

The block is evaluated through Avo::ExecutionContext with resource, parent_resource, params, and arguments passed in, on top of the context's own current_user, context, request, and view_context.

-> self.empty_message

The message shown in the panel when options returns an empty collection.

self.empty_message = "Please select a country to view options."

• Type: String
• Default: nil — falls back to the translated default
• i18n key: avo.no_options_available ("No options available")

Instance methods

-> apply

The only required method. Called when Avo fetches records for the Index view; must return the (modified) query.

def apply(request, query, value)
  query.where("LOWER(name) LIKE ?", "%#{value}%")
end

• request — the current request object, from which you can read params
• query — the Active Record relation Avo built to fetch the records; chain conditions onto it
• value / values — the user's choice(s), shaped per the base class table above

-> options

Defines the choices offered to the user (checkbox filters, select filters, and multiple select filters). Returns a Hash of option id to label.

def options
  {
    published: "Published",
    unpublished: "Unpublished"
  }
end

• Default: none — checkbox and select filters render empty (showing the empty_message) without it

The method body can run any Ruby — database queries, API calls. Inside it you have access to the runtime objects below, including applied_filters for building filters that depend on each other.

-> default

The filter's pre-applied state on page load. Return the same shape apply expects for the filter type.

def default
  {is_featured: true}
end

• Default: nil — no pre-applied state

Also settable as a class attribute (self.default = {is_featured: true}). Symbols are fine — the value is stringified before reaching apply. The same runtime objects are available as in options.

-> react

A hook for changing this filter's value in response to other filters. It runs after all filters are applied; return the new value for this filter (same shape apply expects), or nil to leave it unchanged.

def react
  if applied_filters["Avo::Filters::CourseCountry"].present? && applied_filters["Avo::Filters::CourseCity"].blank?
    {"New York" => true}
  end
end

• Default: not defined — no reaction

See React to other filters for a worked example.

Runtime objects

These are available inside apply, options, default, and react.

-> applied_filters

A Hash of the currently applied basic filters, keyed by filter class name (as a string), holding each filter's current value.

applied_filters
# => {
#   "Avo::Filters::CourseCountry" => {
#     "USA" => true,
#     "Japan" => false
#   }
# }

-> arguments

The arguments hash passed when registering the filter. Defaults to {}.

-> params / request / view_context / current_user

The current request's params, the request object, the Rails view context, and the current user, as configured by current_user_method.

Date time filter options

Options specific to Avo::Filters::DateTimeFilter.

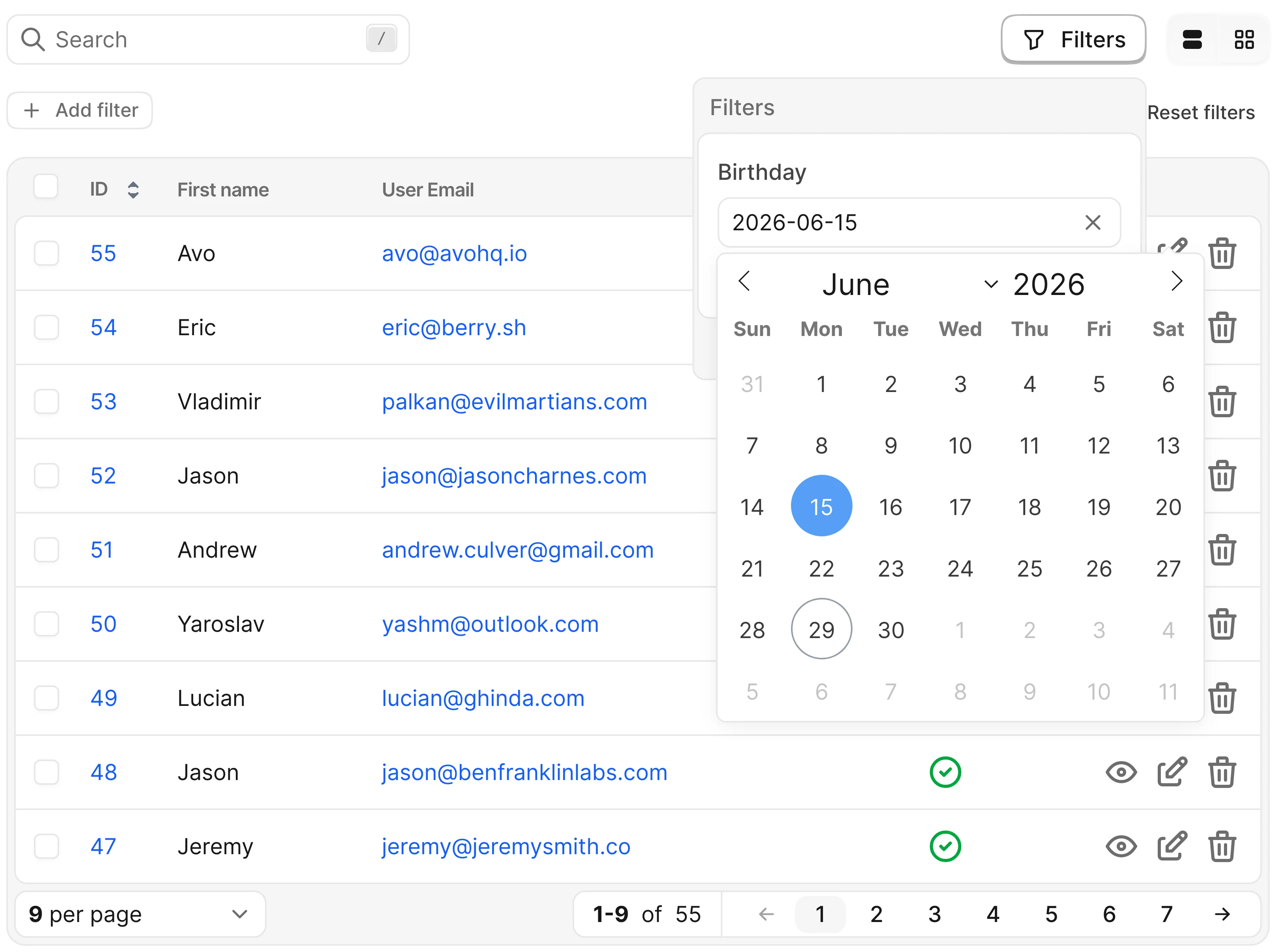

-> self.type

The kind of input the picker renders.

self.type = :date

• Type: Symbol
• Default: :date_time

Value	Behavior
:date_time	Date and time selection
:date	Date selection only
:time	Time selection only (no calendar)

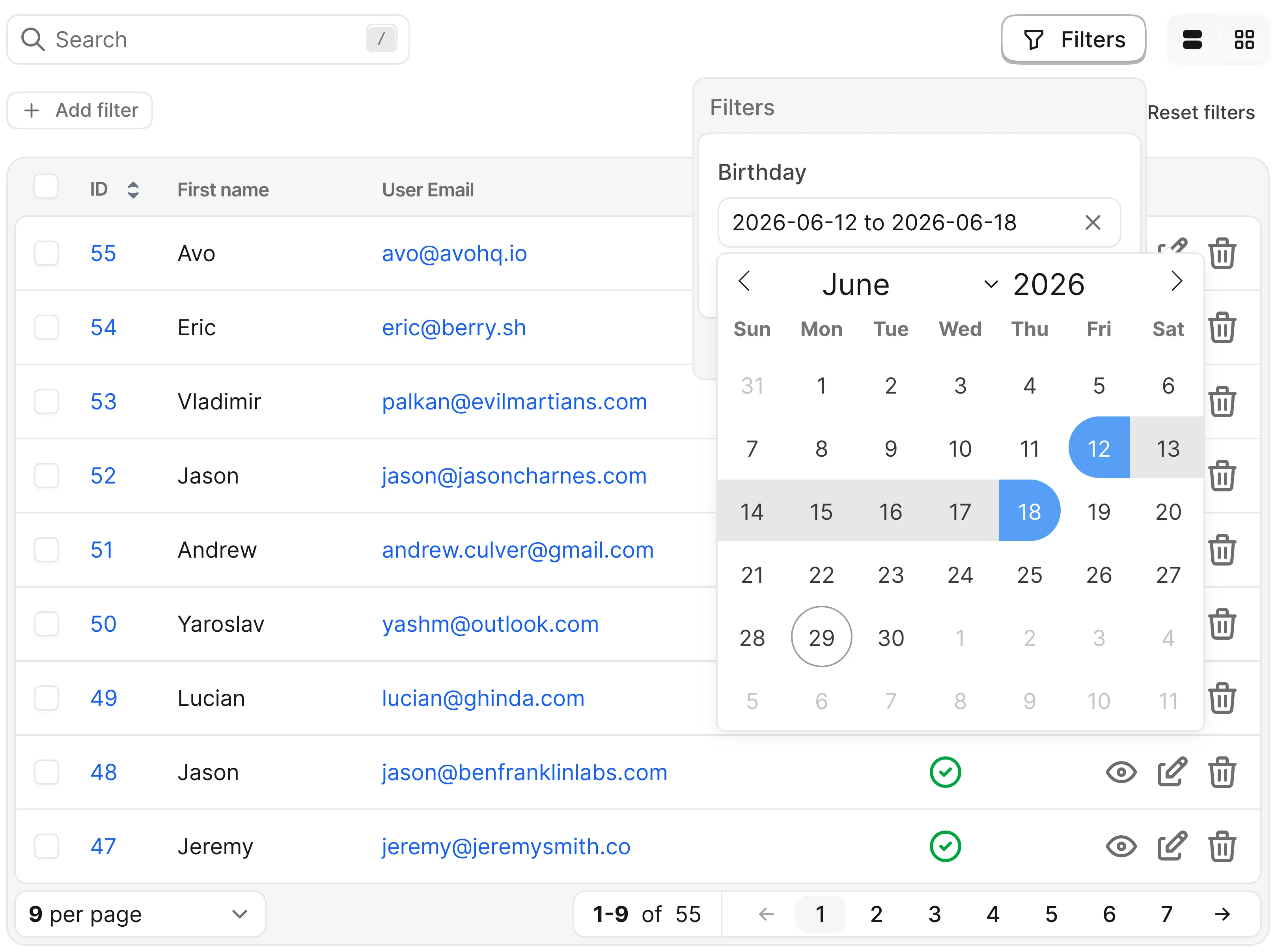

-> self.mode

Whether the user picks a single value or a range.

self.mode = :single

• Type: Symbol
• Default: :range

Value	Behavior
:range	Start and end selection; value arrives as "2024-08-13 to 2024-08-16" — split with value.split(" to ")
:single	One date/time; value arrives as a single formatted string

-> picker_format

The flatpickr format string used to serialize the picked value — which determines the format of value in apply.

• Default: derived from self.type

self.type	Default format
:date	"Y-m-d"
:date_time	"Y-m-d H:i:S"
:time	"H:i:S"

Override the method to change it:

def picker_format
  "Y-m-d"
end

-> picker_options

The full option hash handed to flatpickr. Override and merge onto super to customize the picker:

def picker_options(value)
  super.merge({minuteIncrement: 3})
end

• Default: computed from self.type and self.mode — sets defaultDate, enableTime, enableSeconds, time_24hr, noCalendar, mode, dateFormat, and minuteIncrement

WARNING

The returned hash is forwarded verbatim to flatpickr in the browser. Overriding keys like mode or dateFormat changes the value your apply method receives.

Registration

-> filter

Registers a filter class on a resource, inside the resource's filters method.

def filters
  filter Avo::Filters::Published
  filter Avo::Filters::Name, arguments: {case_insensitive: true}
end

• arguments — optional Hash made available in the filter's apply and options methods and in the self.name, self.button_label, and self.visible blocks. Default: {}

URL encoding helpers

Basic filter state travels in the encoded_filters URL param as Base64-encoded JSON. These helpers convert between the two representations — useful for linking to pre-filtered views.

-> encode_filter_params

Rails view helper that encodes a filters hash into the serialized state Avo understands. Available in views and off view_context.

encode_filter_params({"Avo::Filters::Name" => "Apple"})
# => "eyJBdm86OkZpbHRlcnM6Ok5hbWUiOiJBcHBsZSJ9\n"

-> decode_filter_params

Rails view helper that decodes the encoded_filters param back into a hash. Available in views and off view_context.

decode_filter_params(params[:encoded_filters])
# => {"Avo::Filters::Name" => "Apple"}

-> Avo::Filters::BaseFilter.encode_filters

Standalone class method with the same behavior as encode_filter_params, usable anywhere.

redirect_to avo.resources_users_path(
  encoded_filters: Avo::Filters::BaseFilter.encode_filters({"Avo::Filters::Name" => "Apple"})
)

-> Avo::Filters::BaseFilter.decode_filters

Standalone class method with the same behavior as decode_filter_params, usable anywhere.

Avo::Filters::BaseFilter.decode_filters(params[:encoded_filters])
# => {"Avo::Filters::Name" => "Apple"}
